3x MTF MA Zones [josseliani]3x MTF MA Zones is a clean multi-timeframe moving average overlay designed for dynamic support/resistance, trend structure and higher-timeframe context.
The indicator combines up to three independently configurable moving averages in one chart overlay. Each MA can use its own type, length, source and timeframe, allowing higher-timeframe moving average structure to be displayed directly on a lower-timeframe chart.
In addition to the three MAs, the indicator can identify the directional relationship between the two longer moving averages and visually highlight changes in that structure.
Three Independent Moving Averages
Each MA can be configured separately.
Available settings include:
MA type: EMA, SMA, WMA or SMMA
Source
Length
Timeframe
Color
Line width
Visibility
The default configuration uses SMMA 50 / 100 / 200.
If the timeframe field is left empty, the MA is calculated using the current chart timeframe.
A different timeframe can be selected independently for each MA. For example, a trader working on a 1-minute chart can display moving averages calculated from the 5-minute or 15-minute timeframe without changing charts.
Confirmed Higher-Timeframe Values
The optional Use Confirmed HTF Values setting controls how higher-timeframe moving averages are displayed.
When enabled, the indicator uses the last completed higher-timeframe MA value. This keeps the higher-timeframe structure stable while the current higher-timeframe candle is still developing.
When disabled, the currently developing higher-timeframe MA value can be displayed instead.
MA Zones
Optional fills can be displayed between:
MA 1 and MA 2
MA 2 and MA 3
This allows nearby moving averages to be viewed as broader dynamic structure zones rather than only as individual lines.
These areas can be useful for observing pullbacks, price reactions and confluence between several moving averages.
MA Cross and Trend Context
The indicator also monitors the relationship between the displayed moving averages.
When all three MAs are visible, the two MAs with the longest selected periods are used for the cross analysis.
If only two MAs are visible, those two are used instead.
A confirmed crossover between the selected pair changes the current directional state:
Green background — bullish MA structure
Red background — bearish MA structure
The background remains active until an opposite crossover changes the directional state.
The crossover itself can also be marked with a small diamond and an optional vertical divider through the chart.
These elements are intended to make changes in the broader MA structure easy to identify without adding separate indicators to the chart.
How I Use It
I mainly use 3x MTF MA Zones to keep higher-timeframe structure visible while trading lower timeframes.
One configuration I use for intraday gold scalping is 5-minute SMMA 50 / 100 / 200 displayed on a 1-minute chart.
I use the moving averages and the areas around them as possible:
trend-structure zones
dynamic support and resistance
reaction areas
pullback areas
continuation levels
higher-timeframe confluence
The background gives an additional visual reference for the current relationship between the longer moving averages.
This is only an example of my own configuration. The MA types, periods and timeframes can be adapted to different markets and trading styles.
Alerts
The indicator includes two types of alerts.
MA Touch Alerts
Each of the three moving averages has an independent touch alert.
A touch is detected when price reaches the corresponding MA. Each MA also has its own cooldown setting to help prevent repeated notifications while price is consolidating around the same level.
MA Cross Alerts
Separate bullish and bearish alerts are available when the selected MA pair crosses and the directional state changes.
This makes it possible to receive notifications both when price reaches an MA area and when the broader moving-average structure changes.
What Makes 3x MTF MA Zones Different
The purpose of 3x MTF MA Zones is to combine several related parts of moving-average analysis in one compact overlay.
Instead of using several separate MA indicators, each moving average can be configured independently with its own type, source, period and timeframe.
The indicator then combines these MAs with optional structure zones, confirmed higher-timeframe values, automatic cross analysis of the relevant longer-period MAs, visual trend-state highlighting and independent touch and crossover alerts.
The result is a simple multi-timeframe structure map that can remain on the trading chart without requiring constant switching between timeframes.
Notes
3x MTF MA Zones does not generate automatic buy or sell signals.
The green and red background represents the directional relationship between the selected moving averages after a confirmed crossover. It should not be interpreted as an automatic instruction to enter a trade.
Moving averages are based on historical price data, and interaction with an MA or MA zone does not guarantee support, resistance, continuation or reversal.
The indicator is intended as a visual market-structure and planning tool and should be combined with the user's own analysis and risk-management process. אינדיקטור
Support and Resistance Zones, Key Levels & Hold Rate [LunqFX]Support and resistance indicators all draw the same picture: a set of key levels and SR zones detected from swing pivots, every one of them looking as important as the next. Five price levels on the chart and no way to tell which one the market actually respects — so you place the order at whichever support or resistance price bounced off last, and call it analysis.
This support and resistance indicator keeps score. Each auto-detected SR zone carries the number of times it has been tested and how many of those tests it held, printed on the level itself:
1.15370 · 71% · 5 of 7 1.14344 · 50% · 1 of 2 1.13763 · 67% · 2 of 3
A key level that has held five of seven tests and one that has held one of six are not the same object, and until that number is on the chart you are trading them as if they were.
Included: automatic support and resistance zone detection from confirmed pivots, a hold-rate record on every level, strength-weighted drawing, a dashboard showing the nearest support and resistance either side of price, and optional buy and sell signals with a trend filter and alerts.
❶ HOW THE SUPPORT AND RESISTANCE ZONES ARE BUILT
Swing points come from confirmed pivots, so a level only exists once the bars on both sides of it have closed — nothing appears and then vanishes. Pivots that land close to each other are merged into a single zone rather than stacked as near-duplicate lines, with the merge distance measured in ATR so it adapts to the instrument.
A zone widens as new pivots join it, but only up to a ceiling. Past that it re-centres on the pivot that just touched it. Without that rule a level slowly swallows everything around it and turns into a band, and the count then measures touches of a band instead of touches of a price.
❷ THE HOLD RATE — what no other support and resistance tool shows
A test opens when price trades into the zone. It resolves on a CLOSED bar, one of two ways:
▸ HELD — price closed back out the side it came from, clear of the zone by a fraction of ATR. The margin matters: without it, a close one tick beyond the edge counts as a rejection, which is how level indicators manufacture events out of noise. ▸ BROKEN — price closed through to the other side.
Nothing is counted while a test is still open. And a fresh test cannot begin until the previous one has had room to breathe, because price chopping inside a zone for a week is one consolidation, not twenty separate tests of the level.
Samples of fewer than four tests are marked with a tilde. Two tests producing "100%" is noise, and the chart says so rather than letting the number stand.
❸ LEVEL STRENGTH YOU CAN SEE
Fill density, border thickness and the halo behind each zone all scale with how often the level has been tested, and levels holding above 60% are drawn in a brighter shade. The chart ranks its own levels — the strongest one is the one that looks strongest, with no arithmetic required from you.
❹ THE DASHBOARD — nearest support and resistance
The nearest level above and the nearest level below, each with its price and its record. When there is no tracked level on one side the panel says exactly that, rather than printing a dash that reads like a fault.
❺ BUY AND SELL SIGNALS — built in, switched off
The indicator includes buy and sell signals: a buy label when a support test holds, a sell label when resistance holds. Turn them on in the Signals section — the switch is the first setting in the group, and every alert works from them.
They ship switched OFF, and the reason is worth stating plainly. A rejection at a support or resistance level is a fact. What price does afterwards is not. A level also tends to weaken with each test as the orders behind it are consumed, so "this level held four times" is not evidence that it will hold a fifth — if anything the reverse. Any indicator that hands you an arrow on every bounce is selling you that assumption without saying so.
When switched on, a signal has to clear six filters before it prints: the level must have been tested enough times to have a record, it must hold more often than it breaks, the rejection must close clear of the zone by a fraction of ATR, price must still be near the level, the trend must agree with the direction, and both the chart as a whole and that particular level must have been quiet since the last one. Set that way they are rare. Treat them as a prompt to look, not as a call to act.
HOW TO USE IT
1 — Choose where to place a resting order. Between two levels the same distance away, the one with the better record is the better limit.
2 — Choose where to expect a break. A level holding one test in six is telling you something too: price is likely to go through it, which makes it a poor place to fade and a reasonable place to trade a breakout.
3 — Place stops behind proven levels. A stop tucked behind a level that has held five of seven has a structural reason to be there.
4 — Read the whole set at once. This is the reading most traders never get. If every level on the chart is showing 30–40%, the market is not respecting levels at all right now — it is trending or reacting to news, and level trading is the wrong approach for the session. When most levels sit at 70%+, the market is rotating and levels are worth trading. That judgement usually takes weeks of screen time; here it is on the chart.
HOW IT WORKS
Pivots of your chosen length define candidate levels. Each new pivot either joins the nearest existing zone within the merge distance or opens a new one; zones are capped in width and the oldest is dropped once the limit is reached. Every zone tracks four numbers: tests, holds, the bar its last test resolved on, and the bar it last signalled on. Tests resolve on closed bars only, with a rejection margin in ATR and a minimum gap between tests. The hold rate is simply holds divided by tests, and the drawing weight is derived from the test count.
Works on any symbol and timeframe. On daily charts and above, leave the minimum test count at one — a level there rarely gets a second test before it matters. On fast intraday charts raise it, since levels are tested often.
SETTINGS
▸ Levels — pivot length, how many levels are kept, how far back they draw, merge distance, zone thickness, maximum width, minimum tests to draw, and the gap between tests. ▸ Signals — off by default; prior holds required, minimum tests before a level may speak, minimum hold rate, cooldowns, distance from price and rejection strength. ▸ Trend Filter — direction requires both price position and the slope of the average, so a range satisfies neither side. ▸ Visuals — extension, labels, candle colouring, dashboard position.
ALERTS — buy signal, sell signal, and any signal. All fire on closed bars only.
NON-REPAINTING — levels are built from confirmed pivots and every test resolves on a closed bar. A record that has printed never changes retroactively, and a level that has appeared never disappears from history.
WHY THESE PARTS ARE ONE SCRIPT
The levels, the record and the visual weight describe one object. Detection alone gives you lines with no way to rank them. The record alone has nothing to attach itself to. The weighting exists only so the record can be read at a glance instead of counted. Take any one away and the other two stop being useful, which is why they ship together rather than as three indicators.
This indicator is an educational market-analysis tool, not financial advice. The hold rate describes what has already happened at a level on the loaded chart; it does not predict what will happen next. Always confirm with your own analysis and manage your risk. אינדיקטור
Sattam Supply | DemandSATTAM Supply | Demand Zones (Multi-Timeframe)
OVERVIEW
This indicator maps supply and demand zones from a timeframe you choose and draws them on your current chart. Instead of marking every swing point, it only accepts a swing that is followed by a genuine displacement move away from that level, measured against volatility (ATR). The goal is a chart with a small number of meaningful zones rather than dozens of overlapping boxes. Zones are drawn as boxes with a 50% midline, extended to the right until price invalidates them.
HOW A ZONE IS CREATED
A zone is created in two stages.
1) Pivot detection
The script looks for a pivot high (for supply) or a pivot low (for demand) on the selected timeframe. A pivot needs "Pivot Length" bars on each side to confirm, so the swing is a completed structural turning point and not a temporary extreme.
2) Displacement confirmation
A confirmed pivot is not enough on its own. After the pivot confirms, the script watches the next few bars ("Displacement Window") for a decisive close away from the level:
- Supply: a close below the pivot candle's low by more than ATR(14) x displacement factor
- Demand: a close above the pivot candle's high by more than ATR(14) x displacement factor
The ATR value used is the one captured at the pivot bar itself, so the confirmation threshold reflects the volatility that existed when the level formed, not the volatility at the moment of the breakout. If no qualifying close appears inside the window, the pivot is discarded and no zone is drawn.
The displacement factor is derived from the "Sensitivity" input: max(0.10, 1.15 - Sensitivity x 0.10). Higher sensitivity means a smaller required move, which produces more zones. Lower sensitivity demands a stronger reaction and produces fewer, more selective zones.
ZONE BOUNDARIES
Each zone is anchored at the pivot candle's own time, so the box starts where the level actually formed.
- Supply: the top is the pivot high, the bottom is the pivot candle's body top, min(open, close).
- Demand: the bottom is the pivot low, the top is the pivot candle's body bottom, max(open, close).
If that body-to-wick distance is unusually thin, the height is expanded to a volatility-based minimum (ATR at the pivot x width factor) so the zone stays usable on quiet candles. The "Width" input scales that minimum.
ZONE MANAGEMENT
Overlap filter: a new zone is rejected if it overlaps an existing zone by more than 45% of the smaller zone's height, or if it forms close in time with a nearly identical midpoint. This prevents clusters of near-duplicate boxes around the same level.
Zone limit: "Max Zones Per Side" caps how many supply and demand zones stay on the chart. When the limit is reached, the oldest zone is removed.
Invalidation: with "Hide Invalidated Zones" enabled, a supply zone is deleted after a close above its top and a demand zone after a close below its bottom. Disable it to keep broken zones visible for context.
Extension: active zones extend to the right by "Zones Offset" bars of the current chart so they stay visible ahead of price.
REPAINTING
Zones are committed only from closed bars of the selected timeframe. When a new higher-timeframe bar opens, the script reads the signal produced by the bar that just closed, and request.security is called with lookahead_off. A zone that has been drawn will not move or disappear on a later refresh, and no zone appears from a still-forming higher-timeframe bar.
Because of this, a zone always appears with a delay of at least "Pivot Length" bars plus the displacement bars on the selected timeframe. That delay is inherent to pivot-based confirmation.
SETTINGS
Source
- Timeframe: the timeframe the zones are calculated from (default 4H). Leave empty to use the chart timeframe.
- Pivot Length: bars required on each side of a swing for it to count as a pivot.
- Sensitivity: 1 to 10. Higher values loosen the displacement filter and allow more zones.
- Displacement Window: how many bars after a pivot confirms the script keeps waiting for a displacement close before discarding the pivot.
Zones
- Width: scales the volatility-based minimum zone thickness.
- Zones Offset: how far zones extend to the right.
- Max Zones Per Side: maximum simultaneous supply and demand zones.
- Hide Invalidated Zones: remove zones after price closes through them.
Style : fill and border colors for supply and demand, plus midline style (dashed, dotted, solid).
Timeframe Label : an on-chart label showing which timeframe the zones come from, with position, size and color options.
HOW TO USE IT
Set the Timeframe higher than your chart timeframe, for example 4H zones on a 15m chart, so you keep a structural reference while working on a lower timeframe. Zones mark areas where an imbalance formed and price left the level quickly. They are areas of interest for observing price behaviour, not signals in themselves.
Reduce Sensitivity and raise Pivot Length on noisy or lower timeframes if too many zones appear. Raise Sensitivity on higher timeframes or slow instruments if too few appear.
ALERTS
Two alert conditions are available: New Supply Zone and New Demand Zone. Both fire when a zone is confirmed from a closed higher-timeframe bar.
NOTES AND LIMITATIONS
- The indicator describes structure that has already formed. It does not predict direction and produces no buy or sell signals.
- Zone quality depends on the selected timeframe and instrument. Settings that work on one market will not automatically suit another.
- Very illiquid symbols or timeframes with wide gaps may produce fewer valid displacement confirmations.
This script is published for educational and analytical purposes only. It is not financial advice and does not guarantee any result. Always test any tool on your own instruments and timeframes before relying on it.
مؤشر مناطق العرض والطلب - متعدد الفريمات
نظرة عامة
يرسم المؤشر مناطق العرض والطلب من فريم تختاره أنت ويعرضها على الشارت الحالي. بدلاً من تعليم كل قمة وقاع، لا يقبل المؤشر السوينق إلا إذا تبعته حركة اندفاع حقيقية بعيداً عن المستوى، تُقاس نسبةً إلى تذبذب السوق عبر ATR. الهدف شارت فيه عدد قليل من المناطق المهمة بدل عشرات الصناديق المتداخلة. تُرسم المنطقة على شكل صندوق مع خط منتصف عند 50% ويمتد لليمين حتى يُبطله السعر.
كيف تتكوّن المنطقة
المرحلة الأولى: البحث عن قمة بيفوت للعرض أو قاع بيفوت للطلب على الفريم المختار. يحتاج البيفوت إلى عدد الشموع المحدد في Pivot Length على كل جانب حتى يتأكد، حتى يكون نقطة انعكاس بنيوية مكتملة لا مجرد طرف مؤقت.
المرحلة الثانية: البيفوت وحده لا يكفي. بعد تأكده يراقب المؤشر الشموع التالية خلال Displacement Window بحثاً عن إغلاق حاسم بعيداً عن المستوى:
- العرض: إغلاق أسفل قاع شمعة البيفوت بمسافة أكبر من ATR(14) مضروباً في معامل الاندفاع.
- الطلب: إغلاق أعلى قمة شمعة البيفوت بمسافة أكبر من ATR(14) مضروباً في معامل الاندفاع.
قيمة ATR المستخدمة هي القيمة المسجّلة عند شمعة البيفوت نفسها، أي أن حد التأكيد يعكس التذبذب الذي كان قائماً وقت تكوّن المستوى لا وقت الاختراق. وإذا لم يظهر إغلاق مؤهّل داخل النافذة يُلغى البيفوت ولا تُرسم منطقة.
معامل الاندفاع مشتق من إدخال Sensitivity بالمعادلة: max(0.10, 1.15 - Sensitivity x 0.10). كلما ارتفعت الحساسية قلّت المسافة المطلوبة وزاد عدد المناطق، وكلما انخفضت تطلّب المؤشر رد فعل أقوى وأعطى مناطق أقل وأكثر انتقائية.
حدود المنطقة
المنطقة مثبّتة على وقت شمعة البيفوت نفسها، فيبدأ الصندوق من حيث تكوّن المستوى فعلاً.
- العرض: القمة هي قمة البيفوت، والقاع هو أعلى جسم الشمعة أي min(open, close).
- الطلب: القاع هو قاع البيفوت، والقمة هي أسفل جسم الشمعة أي max(open, close).
وإذا كانت هذه المسافة رفيعة بشكل غير معتاد يُوسَّع الارتفاع إلى حد أدنى مبني على ATR عند البيفوت مضروباً في معامل العرض، حتى تبقى المنطقة قابلة للاستخدام على الشموع الهادئة. ويتحكم إدخال Width في هذا الحد الأدنى.
إدارة المناطق
فلتر التداخل: تُرفض أي منطقة جديدة تتداخل مع منطقة قائمة بأكثر من 45% من ارتفاع الأصغر بينهما، أو تتكوّن قريباً منها زمنياً بمنتصف شبه مطابق. هذا يمنع تراكم صناديق شبه مكررة حول المستوى نفسه.
حد المناطق: يحدّد Max Zones Per Side أقصى عدد للمناطق على كل جهة، وتُحذف الأقدم عند تجاوز الحد.
الإبطال: مع تفعيل Hide Invalidated Zones تُحذف منطقة العرض بعد إغلاق فوق قمتها، ومنطقة الطلب بعد إغلاق تحت قاعها. ويمكن تعطيله للإبقاء على المناطق المكسورة كسياق.
الامتداد: تمتد المناطق النشطة لليمين بمقدار Zones Offset من شموع الشارت الحالي لتبقى ظاهرة أمام السعر.
إعادة الرسم
تُعتمد المناطق من الشموع المغلقة فقط على الفريم المختار. عند فتح شمعة جديدة على الفريم الأعلى يقرأ المؤشر الإشارة الناتجة عن الشمعة التي أُغلقت للتو، وتُستدعى request.security بخيار lookahead_off. لذلك المنطقة بعد ظهورها لا تتحرك ولا تختفي عند التحديث، ولا تظهر أي منطقة من شمعة لم تُغلق بعد.
ونتيجة لذلك تظهر المنطقة متأخرة بمقدار شموع البيفوت زائد شموع الاندفاع على الفريم المختار، وهو تأخير ملازم لأي تأكيد مبني على البيفوت.
الإعدادات
المصدر
- Timeframe: الفريم الذي تُحسب منه المناطق، والافتراضي 4 ساعات. اتركه فارغاً لاستخدام فريم الشارت.
- Pivot Length: عدد الشموع المطلوبة على كل جانب لاعتماد البيفوت.
- Sensitivity: من 1 إلى 10، والقيم الأعلى تخفف فلتر الاندفاع وتسمح بمناطق أكثر.
- Displacement Window: عدد الشموع التي يواصل المؤشر خلالها انتظار إغلاق الاندفاع بعد تأكد البيفوت قبل إلغائه.
المناطق
- Width: يتحكم في الحد الأدنى لسماكة المنطقة المبني على التذبذب.
- Zones Offset: مدى امتداد المناطق لليمين.
- Max Zones Per Side: أقصى عدد متزامن لمناطق العرض والطلب.
- Hide Invalidated Zones: حذف المناطق بعد إغلاق السعر خلالها.
الستايل: ألوان التعبئة والحدود للعرض والطلب، ونمط خط المنتصف متقطع أو منقّط أو متصل.
مؤشر الفريم: لوحة صغيرة على الشارت تبيّن الفريم الذي جاءت منه المناطق، مع خيارات الموضع والحجم واللون.
طريقة الاستخدام
اجعل الفريم في الإعدادات أعلى من فريم الشارت، مثل مناطق 4 ساعات على شارت 15 دقيقة، لتحتفظ بمرجع بنيوي وأنت تعمل على فريم أصغر. المناطق تعلّم أماكن تكوّن اختلال في التوازن غادر السعر مستواها بسرعة، وهي مناطق اهتمام لمراقبة سلوك السعر لا إشارات بحد ذاتها.
خفّض Sensitivity وارفع Pivot Length على الفريمات الصغيرة أو الأسواق المزعجة إذا ظهرت مناطق كثيرة، وارفع Sensitivity على الفريمات الكبيرة أو الأدوات البطيئة إذا كانت المناطق قليلة.
التنبيهات
تنبيهان متاحان: منطقة عرض جديدة، ومنطقة طلب جديدة، ويُطلقان عند تأكيد المنطقة من شمعة مغلقة على الفريم الأعلى.
ملاحظات وحدود
- المؤشر يصف بنية سعرية تكوّنت بالفعل، ولا يتنبأ بالاتجاه ولا يعطي إشارات شراء أو بيع.
- جودة المناطق تعتمد على الفريم والأداة المختارة، والإعدادات التي تناسب سوقاً لا تناسب غيره تلقائياً.
- الرموز ضعيفة السيولة أو الفريمات ذات الفجوات الواسعة قد تعطي تأكيدات اندفاع أقل.
يُنشر هذا المؤشر لأغراض تعليمية وتحليلية فقط، وليس نصيحة مالية ولا يضمن أي نتيجة. اختبر أي أداة على أدواتك وفريماتك قبل الاعتماد عليها. אינדיקטור
Auto Trendlines - Support Resistance Touch-Graded [Dots3Red]📐 AUTO TRENDLINES - Support Resistance Touch-Graded
Most auto-trendline tools do one thing: draw a line and stop. This one keeps score. Every time price touches a detected trendline, the touch is graded on confirmed bars — did price genuinely bounce away, or push through? The result is a running, honest record instead of a static line you're left to interpret on your own.
🎯 WHY THIS MATTERS
A trendline by itself is just a guess about where price might react. This script turns that guess into a measurement. Instead of assuming "trendlines work," it tracks — on this specific chart, in real time — how often they actually have. If a line has been touched four times and bounced three, you see exactly that: "4 touches · 3 bounced." No line gets the benefit of the doubt it hasn't earned.
⚙️ HOW IT WORKS
📍 Detection — the script tracks one active resistance line (built from the two most recent confirmed pivot highs) and one active support line (from the two most recent pivot lows). A slope filter rejects near-horizontal lines, since those are levels, not trendlines — different tool, different job.
🎯 Touch grading — when price reaches close enough to a line (configurable tolerance), that touch enters a pending state. Within a set number of bars, it resolves one of three ways:
• Bounce — price moved away cleanly without breaking
• Break — price closed convincingly through the line; it retires and the line's story ends there
• Timeout — neither happened clearly enough to call
📊 Two layers of scoring — each individual line carries its own tally (shown right on the chart), and the dashboard separately tracks a global bounce rate across every line the script has drawn on that chart, so far. That global number is the honest headline: it's what trendline touches have actually done here, not a theoretical average.
✨ Trendline glow — each active line gets a soft fade extending away from it, independently. This isn't a channel — resistance and support aren't matched pairs here, so the two glows are deliberately unrelated, each hugging only its own line.
🔒 Non-repainting — lines are built only from confirmed pivots and never quietly redrawn to fit later price. Touch grading happens only on confirmed bars. What you see historically is what happened, not a retrofit.
🧭 HOW TO USE
1️⃣ Read the label, not just the line. "3 touches · 1 bounced" and "3 touches · 3 bounced" look identical as a plain line, but tell very different stories about how much to trust the next touch.
2️⃣ Check the dashboard's global Bounce Rate before leaning on any single line. If the aggregate rate on this chart is sitting at 35%, that's useful context — it means trendlines haven't been particularly reliable here lately, regardless of how convincing any one line looks in isolation.
3️⃣ Watch for the retirement. Once a line breaks, it's either removed immediately or kept as a dashed reference (your choice, see settings) — either way, a broken line stops being "live" and stops collecting new touches. Don't keep treating a dashed line as active support/resistance.
4️⃣ Tune the tolerance and outcome window to the instrument. A fast-moving crypto pair and a slow index behave very differently — the default settings are a reasonable starting point, not a universal fit.
🛠️ SETTINGS
📐 Detection
• Pivot Leg — bars required each side to confirm a pivot; larger = fewer, more significant pivots
• Require Meaningful Slope + Min Slope — filters out near-horizontal lines
• Max Line Age — retires lines that have simply gotten too old
🎯 Touch Grading
• Touch Tolerance — how close price must come to count as a touch
• Break Buffer — how far past the line close must clear to count as a break
• Bounce Distance — how far price must move away, cleanly, to count as a bounce
• Outcome Window — bars allowed for a touch to resolve
🎨 Visualization
• Line Stat Labels, Touch Markers — toggle each independently
• Show Broken Lines — keep retired lines visible (dashed) or clear them immediately
• Trendline Glow + Glow Fade Distance — soft fade extending from each active line
EXAMPLE ( with Broken Trend Lines )
🖥️ Dashboard
• Show/hide, position — current resistance/support status, global bounce rate, break count, active pivot leg
📝 NOTES
Because only one resistance and one support line are actively tracked at a time, older structure isn't shown once a fresher pivot pair replaces it (unless "Show Broken Lines" is enabled). This script measures how trendlines have behaved on this chart — it does not predict how any specific future touch will resolve.
⚠️ DISCLAIMER
This is an analytical and visualization tool. It does not generate trade signals and does not constitute financial advice. Historical bounce/break rates do not guarantee future performance. אינדיקטור
HTF Swing Highs & LowsAn open-source multi-timeframe market structure indicator that automatically identifies and projects confirmed swing highs and swing lows from the Weekly, Daily, and 4-Hour timeframes onto any lower timeframe chart.
The indicator is designed to provide clean, non-repainting support and resistance levels based on confirmed market structure rather than developing pivots.
Features
- Weekly, Daily and 4H swing highs and lows
- Non-repainting confirmed pivots
- Automatic higher timeframe detection using request.security()
- Horizontal levels extended until invalidated
- Independent visibility controls for each timeframe
- Hierarchical timeframe filtering
- Custom colours and line widths for every timeframe
- Adjustable pivot strength
- Wick, Close or Never invalidation options
- Stop or Delete broken levels
- Automatic level management to prevent exceeding TradingView object limits
How it works
The script uses confirmed pivot highs and lows from higher timeframes.
Unlike developing pivots, a swing is only confirmed after the selected number of candles has formed on both sides of the pivot. Once confirmed, a horizontal level is created at the swing price and extended to the right.
Because only confirmed pivots are used, historical levels do not repaint.
Pivot Strength
Pivot Strength controls how significant a swing must be before it becomes a level.
A strength of 3 means the pivot candle must have:
- three lower highs (or higher lows) before it
- three lower highs (or higher lows) after it
Higher values filter market noise and identify more significant market structure.
They also produce fewer levels and require longer confirmation.
Lower values detect smaller swings, produce more levels, react faster.
Level Invalidation
Choose how a level is treated once price trades through it.
Wick - Invalidates when price wicks beyond the level.
Close - Invalidates only after a candle closes beyond the level.
Never - Levels remain permanently.
Broken levels can either:
- Stop extending while remaining visible
- Be deleted completely
Hierarchical Visibility
The indicator can automatically display only relevant higher timeframe levels.
For example:
- Weekly levels appear on Weekly and all lower timeframes.
- Daily levels appear on Daily and all lower timeframes.
- 4H levels appear on 4H and lower charts.
This helps reduce clutter when analysing higher timeframe charts.
Notes
- Uses confirmed higher timeframe pivots only.
- Levels are anchored to the original swing candle.
- Designed for support and resistance, market structure, liquidity analysis, and confluence with other tools.
- Works on all symbols and asset classes supported by TradingView. אינדיקטור
אינדיקטור
SATTAM | Lost Balance | Digital LevelsOVERVIEW
Lost Balance plots a price grid derived from digit-sum arithmetic on a swing pivot, then looks for break-and-retest entries at those levels with a full risk map attached.
The idea is that a market's reaction distances are not arbitrary: the digits of a significant swing price are reduced to a single root number, and that root selects one of three fixed spacing "families". Every level in the grid sits an exact multiple of that spacing away from the pivot.
HOW IT WORKS
1 — Core code
The script finds the most recent confirmed pivot high or low on a higher timeframe. It takes the first four digits of that price from the left (ignoring the decimal point), adds them, then reduces the sum to a single digit between 1 and 9.
Example: pivot 4065.33 → 4065 → 4+0+6+5 = 15 → 1+5 = 6. Core code = 6.
2 — Family law
The core code selects the grid spacing:
• codes 1, 4, 7 → family 12 → 12.0 price units
• codes 2, 5, 8 → family 15 → 15.0 price units
• codes 3, 6, 9 → family 18 → 18.0 price units
3 — Level grid
From the pivot, the script draws N levels above and N below, each exactly one family step apart. The pivot line itself is highlighted.
4 — Structure filter
Market bias is read from the same higher timeframe using swing sequence: higher high plus higher low is bullish, lower high plus lower low is bearish, anything else is neutral. Longs are only allowed in a bullish structure, shorts only in a bearish one, and no signals are produced when structure is neutral.
5 — Entry
On the chart timeframe, a signal requires two events in order. First a candle closes through a grid level. Then price returns to that same level and closes back in the direction of the break. The setup is discarded if price closes back on the wrong side, or if the retest does not occur within the configured bar window.
6 — Risk map
Entry is placed at the broken level itself, which makes every distance a whole number of family steps:
• Stop loss — one step back (the previous level)
• Target 1 — one step forward, 1:1
• Target 2 — two steps forward, 1:2
• Target 3 — three steps forward, 1:3
A red box marks the risk zone and a green box the reward zone. When Target 1 is touched, a "SL → BE" marker appears and the script switches its own stop tracking to breakeven.
SETTINGS
• Level timeframe — where the pivot and grid come from (15 / 30 / 60 / 120 / 240)
• Pivot length — left/right bars required to confirm a swing
• Manual pivot price — type a swing price yourself to override auto-detection
• Levels per side — how many grid lines to draw above and below
• Structure filter — enable or disable the directional filter
• Max bars to wait for retest — how long a break stays valid
• Enable Target 3
• Colors for levels, pivot, risk zone and reward zone
An on-chart table shows the pivot price, its first four digits, the digit sum, the core code, the family, the step in price units, and the current structure.
ALERTS
Four alerts are available through "Any alert() function call": long signal, short signal, Target 1 touched (move stop to breakeven), and stop loss hit.
HOW TO USE
Open a 3-minute chart, leave the level timeframe on 60 minutes, and wait for the grid and structure to settle. When a signal prints, the entry, stop and targets are already drawn at exact grid prices — no measuring required.
IMPORTANT NOTES
The family steps of 12, 15 and 18 are absolute price units, not percentages or ATR multiples. This makes the script meaningful on gold, where those values correspond to 120, 150 and 180 points, and meaningless on instruments quoted at a very different scale such as major FX pairs. Adjust your expectations accordingly, or use the manual pivot input to experiment.
The source method does not define how market structure should be measured, so a standard swing-sequence read is used here. It can be turned off if you prefer to set the bias yourself.
Only one position is tracked at a time. A new signal is not accepted until the current one resolves at its stop or final target.
This script draws levels and setups for study and execution assistance. It does not place orders and it is not financial advice.
CREDITS
The digital-levels method — core code extraction, the three spacing families, and the step-based stop and target map — comes from the "Lost Balance" chapter of the SOVEREIGN trading book. The Pine implementation, structure filter, break-and-retest state machine and trade tracking are original work.
نظرة عامة
يرسم المؤشر شبكة أسعار مشتقة من جمع أرقام سعر بيفوت، ثم يبحث عن دخول بكسر وإعادة اختبار عند تلك المستويات مع خريطة مخاطرة كاملة.
آلية العمل
1. الشفرة المركزية — يرصد آخر قمة أو قاع مؤكد على فريم أعلى، يأخذ أول 4 أرقام من اليسار، يجمعها، ثم يبسّط الناتج لرقم واحد بين 1 و 9.
مثال: 4065.33 ← 4065 ← 4+0+6+5 = 15 ← 1+5 = 6.
2. قانون العائلات — الشفرات 1-4-7 تعطي عائلة 12، والشفرات 2-5-8 عائلة 15، والشفرات 3-6-9 عائلة 18. وهذه هي المسافة الثابتة بين المستويات.
3. الشبكة — من البيفوت تُرسم مستويات فوق وتحت، المسافة بينها خطوة العائلة بالضبط.
4. الهيكلة — قمة أعلى مع قاع أعلى = صاعد، وقمة أدنى مع قاع أدنى = هابط. الشراء مسموح في الصاعد فقط والبيع في الهابط فقط، ولا إشارات في العرضي.
5. الدخول — إغلاق شمعة خارج المستوى، ثم عودة السعر للمستوى نفسه وإغلاقه في اتجاه الكسر.
6. خريطة المخاطرة — الدخول عند المستوى المكسور، والوقف عند المستوى السابق، والأهداف الثلاثة عند المستويات التالية بنسب 1:1 و 1:2 و 1:3. عند لمس الهدف الأول يظهر وسم SL → BE.
ملاحظة مهمة
خطوات العائلة (12 و 15 و 18) قيم سعرية مطلقة وليست نسباً، فهي ذات معنى على الذهب حيث تعادل 120 و 150 و 180 نقطة، وبلا معنى على أدوات ذات تسعير مختلف كلياً مثل أزواج العملات الرئيسية.
المؤشر أداة رسم ومساعدة تنفيذ، لا ينفّذ أوامر ولا يُعد نصيحة مالية.
المصدر
منهج المستويات الرقمية مأخوذ من فصل "التوازن المفقود" في كتاب SOVEREIGN. التنفيذ بلغة Pine وفلتر الهيكلة وآلة حالة الكسر وإعادة الاختبار ومتابعة الصفقة عمل أصلي. אינדיקטור
Navyraid FVANavyraid FVA (Fair Value Area)
Description:
Overview
The Navyraid Fair Value Area (FVA) is a specialized analytical tool built upon the principles of Auction Market Theory (AMT). According to AMT, financial markets exist to facilitate trade, constantly moving between states of balance and imbalance. The market tends to travel from one established Value Area to another.
This indicator maps out these crucial areas by analyzing where the market spends the most time and how frequently specific price levels are visited throughout the trading day. By identifying these zones of high historical acceptance, the indicator projects key levels from previous sessions that act as strong magnets and significant support/resistance zones for current and future market action.
How It Works (Core Logic)
The indicator evaluates price action by breaking down the high-to-low range of each candle into specific discrete price bins (ticks). It then tallies how often the price trades through each bin over a defined period (daily basis).
Value Area Calculation: It accumulates these price interactions to find the area where a specified percentage of trading activity occurred (default is 68%, representing one standard deviation of the mean).
Key Level Extraction: It isolates the single price levels with the highest concentration of activity for both the Mayor and Minor FVA.
Main Features
Mayor FVA: This represents the Point of Control (POC) or the price level with the highest time accumulation strictly within the 68% Value Area. This zone acts as the primary focal point of market balance and a high-probability price magnet.
Minor FVA: This marks the most significant high-time node located strictly outside the established Value Area. These peripheral nodes frequently serve as crucial turning points, rejection zones, or targets when the market breaks out of its primary balance.
Smart Mitigation (Freeze Logic): To keep the chart clean and relevant, FVA zones are projected forward as boxes. By default, once the current price touches or "mitigates" an extended box, the box stops extending (freezes).
Force Extend: A toggle that overrides the mitigation logic, forcing the FVA boxes to continuously project forward regardless of price interaction, useful for long-term level tracking.
Auto Tick Size: The script automatically scales the bin sizes based on the asset's specific price range and minimum tick, making it universally applicable across Forex, Indices, Crypto, and Equities without manual adjustment.
How to Use in Trading
Traders can utilize the Navyraid FVA to understand the broader market context based on AMT.
Targets: If the price is moving directionally, previous Mayor FVAs serve as logical take-profit zones, as the market seeks historical balance.
Reactions: Minor FVAs can be observed for potential pullbacks or continuation setups when the market tests extreme areas outside of the previous day's accepted value.
Disclaimer: This indicator is designed for educational and analytical purposes to visualize Auction Market Theory concepts. It does not constitute financial advice. אינדיקטור
ICT Smart Money Execution Engine PROICT Smart Money Execution Engine PRO
ICT Smart Money Execution Engine PRO is an advanced, high precision technical analysis tool designed for traders practicing Inner Circle Trader and Smart Money Concepts methodologies. It automatically maps structural context, liquidity sweeps, macro price extremes, and key session windows while keeping your charting environment ultra clean.
Key Features Overview
1. Intermediate Term Highs and Lows Badge Labels
Identifies major market turning points with distinct solid badge style labels. Intermediate Term Highs are clearly displayed with red ITH badges above swing points, and Intermediate Term Lows are displayed with green ITL badges below swing points.
2. Auto Mitigating Previous Day High and Low
Projects active daily boundaries on your chart. To prevent visual clutter, Previous Day High and Previous Day Low lines automatically delete as soon as price touches or mitigates them.
3. Red Line Termination Liquidity Sweeps
Tracks high probability liquidity pools sitting above swing highs and below swing lows. When price sweeps liquidity, a solid 2x width red line connects the original swing point directly to the sweeping candle wick, terminating instantly with a clear Liquidity Swept label.
4. Dynamic Auto Mitigating Fair Value Gaps
Automatically identifies bullish and bearish price imbalances across all timeframes. Unmitigated FVG boxes dynamically clean up and vanish as soon as price returns to fill them.
5. Volume Validated Order Blocks
Detects key institutional order block zones using a customizable 50 bar lookback by default. Zones remain active until price firmly closes beyond their boundaries.
6. Clean New York Session Highlight
Provides a single, ultra light background overlay specifically for the New York Session window, eliminating the distraction of multiple overlapping global sessions.
7. Market Structure Shift Detection
Tracks momentum reversals in real time by drawing clean dashed structure lines and MSS labels when key structural pivots are broken by candle closes.
How to Use
Step 1: Determine Macro Bias
Use the red ITH and green ITL badges to locate institutional swing extremes and understand the broader market trend.
Step 2: Focus on New York Session
Analyze price action during the highlighted New York Session window when market volume and institutional volatility are highest.
Step 3: Identify Liquidity Sweeps
Watch for price to sweep an active Previous Day High, Previous Day Low, or recent swing level marked by the bold red Liquidity Swept line.
Step 4: Execute on Structural Confirmation
Wait for a Market Structure Shift signal following a liquidity sweep, then evaluate entries on retaps into active Order Blocks or Fair Value Gaps.
Settings Overview
ITH / ITL Settings
- Show ITH / ITL Badge Labels: Toggle visibility of intermediate swing badges.
- Lookback Sensitivity Length: Adjust pivot lookback sensitivity for detecting macro highs and lows.
- Colors: Customization options for ITH and ITL badge background colors.
Previous Day High and Low Settings
- Show Active PDH / PDL: Toggle display of auto disappearing daily levels.
- Line Width and Style: Choose between solid, dotted, or dashed line styles and adjust thickness.
Fair Value Gap Settings
- Show Active FVGs: Toggle dynamic imbalance box visibility.
- FVG Transparency: Adjust fill opacity for bullish and bearish boxes.
Order Block Settings
- OB Lookback Length: Customize the pivot length used for order block detection (default is set to 50).
Liquidity Sweep Settings
- Show Liquidity Sweeps: Toggle sweep lines and labels.
- Sweep Line Color: Customize the color of the 2x width sweep termination line.
Session Settings
- Show Only New York Session: Toggle visibility of the session background highlight.
- NY Session Window: Set exact session hours to match your local or UTC-4/5 preferences.
Disclaimer
This script is built strictly for educational, analytical, and charting enhancement purposes. It does not provide financial advice, automated trading signals, trade management, or guaranteed results. Trading financial markets involves substantial risk of capital loss. Always perform your own analysis and practice strict risk management.
אינדיקטור
Zone Radar [DefinedEdge]Price spends most of its time going nowhere. Zone Radar finds those stretches automatically, draws the range while it's still forming, and tells you the moment it breaks and how hard.
🎯 What it does
Zone Radar watches for price coiling inside a bounded range. When a genuine consolidation forms, it marks the zone with its support and resistance, then tracks it live. The instant price closes decisively outside the range, it flags the break and scores its strength from 0 to 100. Strong breaks get a bold label and a projected target.
It is a context and breakout tool, not a signal service. It shows you where the market is compressed and when that compression releases. What you do with that read is yours.
🧭 How a zone is found
A range only qualifies when two things are true at once:
Price stays inside an ATR normalised band for a minimum number of bars, so the width adapts to any symbol or timeframe on its own.
Price does not drift across that band from one side to the other, which filters out slow trends pretending to be ranges.
Once a zone is confirmed the box breathes to hug the real range, but it is capped at the width it formed with. That cap is what makes a breakout meaningful: a close beyond it is a true expansion out of compression, not just another bar inside the noise.
💥 Break strength (0 to 100)
Every break is graded on four things that separate a real breakout from a fake one:
Displacement how far beyond the edge it closed, in ATR
Range expansion the break bar's range against its recent average
Volume surge participation on the break (auto adjusted on symbols with no volume data, like spot FX)
Coil quality how long and tight the range was, since a longer coil breaks harder
Breaks at or above your Strong threshold get the bold badge plus a measured move target: the height of the range projected from the breakout point. Broken edges stay on the chart as polarity support and resistance for the retest.
⚙️ Under The Hood
Signals fire on the close of the breakout bar. No repainting, ever.
Fully adjustable: range length, width, break sensitivity, strength threshold, and how much history stays on the chart.
Works on any market and any timeframe. Tuned nicely for intraday out of the box.
🔔 Alerts
Zone formed, break up, break down, strong break up, strong break down. Wire any of them into your workflow.
📝 Notes
Lower timeframes produce far more zones than higher ones, so only the most recent are kept drawn to stay within platform limits. Raise the zone cap if you want more history, or drop to a higher timeframe for a cleaner chart. The ATR based settings are a starting point, not gospel. Tune them to how your instrument actually moves. אינדיקטור
Support Resistance AI [PickMyTrade]Every support/resistance tool answers "where are the levels." None answer the question a trader actually has when price arrives at one: does THIS test look like the ones that held, or like the ones that broke?
――――――――――――――――――――――――――――――――――――――
🔷 WHAT IT MEASURES
🔸 Confirmed swing pivots, clustered into zones and merged as new evidence accumulates
🔸 Eight properties of every ARRIVAL at a zone — approach speed, relative volume, prior test count, zone age, trend pressure, zone width, pivot count, and cumulative touches
🔸 A broken level isn't discarded — it flips role once (broken support becomes candidate resistance) and only a second failure retires it
🔸 A live Previous Day/Week High/Low reference map, shown only when price is within range
――――――――――――――――――――――――――――――――――――――
🔷 THE CLASSIFIER
🔸 An online Gaussian Naive Bayes model, trained continuously as tests resolve — no repainting, no lookahead
🔸 Nothing about a level's price is used as a feature — only how price approached it
🔸 The classic claim that "a level tested repeatedly grows weaker" is measured on each chart's own history here, rather than assumed
🔸 Below a configurable warmup sample count, the script shows the chart's running hold rate instead and reads LEARNING — it never guesses early
――――――――――――――――――――――――――――――――――――――
🔷 SIGNALS AND DISPLAY
🔸 Zone boxes colored by role (support/resistance) and shaded by live conviction, with worded verdicts ("similar arrivals held X%") instead of a bare number
🔸 Rank-based visibility — only the nearest zones to current price are drawn, so old or distant levels never stretch the chart's scale
🔸 Test history ticks stamped inside each zone at the bar where its own tests resolved
🔸 An info table with Nearest Support/Resistance, model accuracy, and sample counts
🔸 3 alertconditions, worded as observations of what the classifier's reading — never as trade instructions
――――――――――――――――――――――――――――――――――――――
🔷 INPUTS
Pivot Left/Right Bars — swing detection window. Default 10/10.
Zone Width / Merge Distance — band thickness and clustering tolerance, in ATR. Default 0.5 / 0.75.
Break Buffer / Rejection Distance — how far price must close beyond or travel back from a zone to resolve a test. Default 0.25 / 0.75 ATR.
Post-Flip Cooldown — bars a flipped zone must survive before a break can retire it. Default 5.
Warmup Samples — resolved tests required before the classifier is trusted. Default 25.
Conviction Threshold — probability at which a zone is shown at full conviction. Default 0.62.
Max Live Zones / Show Distance — how many nearby zones are drawn and how far (in ATR) before one is hidden.
Show Trend EMA, Zen Mode — display toggles; Zen Mode hides labels and the table for clean screenshots.
――――――――――――――――――――――――――――――――――――――
🔷 REQUIREMENTS AND LIMITATIONS
🔸 Pivots confirm only after the right-side lookback bars close — a level appears on the chart later than the swing that created it, by design
🔸 One thing does refine retroactively: when a later pivot merges into an existing zone, its band re-centers toward the weighted average — a zone with an open test is never re-centered, so no in-progress outcome is affected
🔸 Early on a fresh chart, or for a zone with only one or two tests, its own read is thin — the model's overall sample count travels with every verdict so that's never hidden
🔸 This script reports how historical arrivals resolved. It does not predict, and it is not a trading system on its own.
――――――――――――――――――――――――――――――――――――――
Built in Pine Script v6. Open source — Mozilla Public License 2.0. אינדיקטור
אינדיקטור

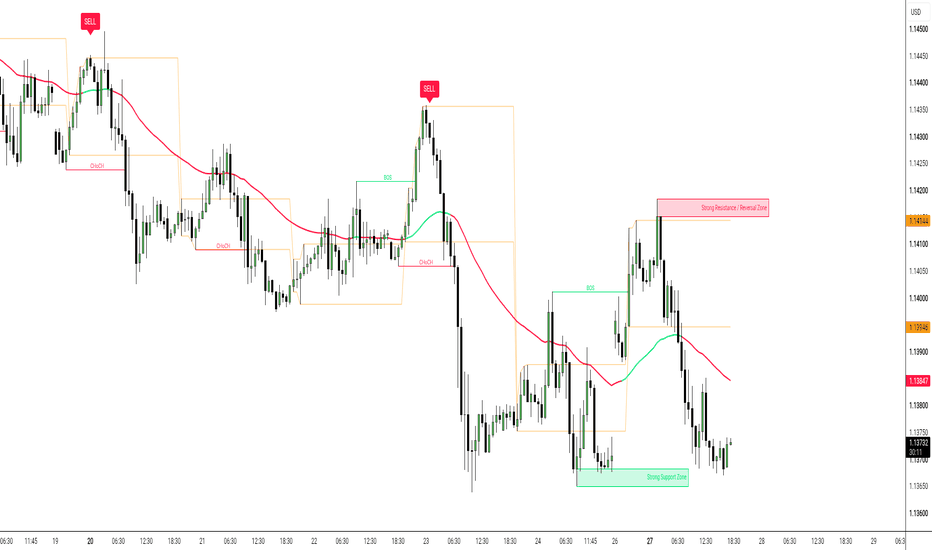

Smart Money Liquidity Matrix & Session Finder==============================================================================================
SMART MONEY LIQUIDITY MATRIX & SESSION FINDER
==============================================================================================
OVERVIEW
The Smart Money Liquidity Matrix & Session Finder is a lightweight, high-precision technical mapping indicator designed to help traders analyze market structure, session ranges, and key supply/demand areas in real time.
By combining smooth higher-timeframe trend directional bias, automated swing structure breaks, and session liquidity windows, this tool provides a clean, clutter-free environment for contextual chart analysis.
KEY TECHNICAL FEATURES
1. ASIAN SESSION RANGE & TIMING ENGINE
• Automatically tracks and marks the Asian Range boundaries (default: 20:00–00:00 NY time).
• Defines a clear trading session execution window (default: 00:00–03:00 NY time) to analyze session breakouts and liquidity sweeps.
2. DYNAMIC SMOOTHED TREND DIRECTION
• Utilizes a double-smoothed moving average filter to plot a clean, adaptive trend line.
• Eliminates false color flips during minor pullbacks, staying Green during bullish momentum and Red during bearish trends.
3. STRUCTURE BREAK MAPPING (BOS & CHoCH)
• Automatically identifies major market structure pivots and plots clean horizontal level lines.
• Features centered text labels for Break of Structure (BOS) and Change of Character (CHoCH) to maintain clean horizontal visualization.
4. BREAKER BLOCK STYLE ZONES
• Maps key dynamic Support and Resistance areas directly around pivot wicks and bodies.
• Features clean, right-aligned inside box text labels identifying major Reversal and Support/Resistance boundaries.
INDICATOR SETTINGS & INPUTS EXPLAINED
1. SESSION & TIMEZONE SETTINGS
• NY Timezone: Configures the base exchange time standard for accurate session calculation.
• Range Window: Defines the exact session hours used to calculate initial liquidity range high/low.
• Trade Window: Sets the active session hours where breakout evaluation is active.
2. SIGNAL & ENTRY CONFIGURATION
• Show Buy / Sell Signals: Toggle display for session breakout and FVG confirmation labels.
• Only 1 Trade Per Day: Limits signal generation to a single daily execution setup to prevent over-analysis.
• Signal Padding: Adjusts the vertical offset (in ticks) for signal labels relative to candle highs/lows.
3. MAJOR SMOOTH TREND LINE
• Smooth Trend Length: Adjusts the baseline length of the trend-following moving average (Higher values smooth out short-term market noise).
4. PROFESSIONAL STRUCTURE (BOS / CHoCH)
• Major Swing Sensitivity: Controls pivot lookback period for detecting major structural breaks (Higher values focus only on higher-timeframe swings).
5. BREAKER BLOCK ZONES
• Zone Sensitivity: Controls the lookback depth for active Support and Resistance breaker zones.
HOW TO USE IN YOUR ANALYSIS
• Trend Bias: Use the smooth dynamic trend line to align your trades with the primary market direction
( Green = Bullish Bias, Red = Bearish Bias).
• Session Liquidity: Observe price behavior relative to the Asian Session High/Low levels during the active trade window.
• Breaker Zones: Dynamic Resistance boxes indicate potential supply/reversal areas, while Support boxes highlight potential demand/bounce levels.
• Structure Confirmation: Use BOS and CHoCH signals to confirm structural trend continuations or shifts.
DISCLAIMER
This technical indicator is provided strictly for educational and chart analysis purposes. It does not constitute financial or investment advice. Past performance is not indicative of future results. Always manage risk responsibly.
==============================================================================================
אינדיקטור
Fan Principle Signals [MarkitTick]💡 Maps out market structure using a sequence of ascending swing lows (or descending swing highs) to construct a three-legged trendline fan, then triggers actionable trade signals the moment price breaks through the steepest line in that fan. Rather than relying on a single moving average or oscillator crossover, this script builds its bias from the actual geometry of recent price swings, giving traders a structural, visually intuitive way to time entries around the exhaustion of a trend.
✨ Originality and Utility
Most breakout tools react to a single reference line, such as a moving average, a fixed channel, or a static trendline drawn from only two points. This script instead applies the fan principle, a technique that connects a common origin point to three successive pivots in the same trend, producing three lines of increasing steepness. The logic behind this approach is that the third and steepest line in the fan typically represents the most aggressive rate of trend continuation, and a decisive close beyond it has historically signaled that the prevailing trend has lost its structural support.
What makes this implementation useful in practice is that it does not stop at drawing the fan. It automatically identifies valid pivot sequences from raw price action, filters out insignificant micro-swings using a minimum leg percentage threshold, validates the freshness of the structure with a lookback cap, and then converts the break event into a complete trade plan, including entry, stop-loss, and three take-profit levels, all derived mathematically from the fan's own geometry and the market's current volatility. The optional volume and higher-timeframe filters allow traders to demand additional confirmation before a signal is accepted, and the built-in dashboard keeps the entire state of the system visible at a glance. The combination of automated structural fan detection, ATR-adaptive risk placement, and live trade monitoring is what distinguishes this from a simple trendline break script.
🔬 Methodology and Concepts
• Pivot Detection
The script continuously scans for swing highs and swing lows using a symmetrical lookback and lookforward window defined by the Pivot Len input. A bar qualifies as a swing high only if it is strictly greater than every other bar within that window on both sides, and a swing low only if it is strictly lower than every bar in that window. Each time a new pivot is confirmed, its bar index and price are stored in a rolling array, keeping the most recent twenty pivots in memory for both highs and lows.
• Fan Construction
Once at least four pivot lows (for an uptrend fan) or four pivot highs (for a downtrend fan) are available, the script selects the four most recent ones. The oldest of the four becomes the fan's origin point. The remaining three form Leg 1, Leg 2, and Leg 3 respectively, each connected back to that same origin. A slope is then calculated for each leg using simple rise-over-run between the origin and that leg's pivot. For the fan to be accepted, the price move between the origin and the first leg must exceed the Min Leg % threshold, which filters out fans built from statistically insignificant noise, and the origin must fall within the Max Fan Lookback window, which prevents the script from anchoring to structure that is too old to remain relevant.
• The Break Condition
Leg 3, the line connecting the origin to the most recent and steepest pivot, is treated as the trigger line. Its price value is projected forward on every bar using the slope calculated at formation. A bullish break requires the fan to currently be in an uptrend orientation, the previous confirmed bar's close to be above the projected Leg 3 value, and the bar before that to have closed at or below it, meaning the break itself happens on a confirmed, completed bar rather than an in-progress one. The bearish break condition mirrors this logic in the opposite direction for downtrend fans. This confirmed-close approach means the script never fires or removes a signal based on an incomplete, still-forming bar, so historical signals will not disappear or move once printed.
• Optional Confirmation Filters
Two independent filters can be layered on top of the raw break condition. The volume filter requires the breaking bar's volume to exceed a multiple of its recent moving average, screening out breaks that occur on unusually thin participation. The higher-timeframe filter compares the breakout bar's close against the prior, fully closed bar on a higher timeframe of your choosing, requiring the breakout direction to align with that broader trend context before a signal is allowed to fire.
• Trade Level Calculation
When a break is confirmed, the script builds an entry, stop, and three take-profit levels automatically. Entry is anchored to the close of the breakout bar. The stop-loss is placed beyond the nearest of the two most recent fan legs, offset further by a small ATR buffer to avoid being clipped by minor wicks, but it is also capped by a maximum ATR distance so a single outlier swing cannot produce an oversized stop. The distance between entry and stop becomes the base risk unit, and the three take-profit levels are placed at user-defined multiples of that risk unit, giving a consistent, R-multiple-based framework for managing the position rather than arbitrary fixed-price targets.
🎨 Visual Guide
Dotted lines connecting the origin point to Leg 1 and Leg 2 show the earlier, less steep sections of the fan structure and provide visual context for how the trend developed.
The solid, extended line represents Leg 3, the active trigger line. It is colored using the Bull Fan color when the fan is in an uptrend orientation and the Bear Fan color when it is in a downtrend orientation, and it projects forward in real time as new bars form.
A blue dashed line marks the Entry level once a signal fires, extending to the right for as many bars as the trade remains active or until a new signal replaces it.
A red solid line marks the Stop-Loss level, with a light red shaded zone (the Risk Fill) drawn between the entry and stop lines to make the risk portion of the trade immediately visible.
Three dashed lines in progressively deeper shades of teal mark Take-Profit 1, 2, and 3, moving from lightest (TP1, closest to entry) to fully opaque (TP3, furthest away). A light teal shaded zone (the Reward Fill) spans from the entry line to the TP3 line, visually contrasting the reward portion of the trade against the risk portion.
Small labels are anchored to each of these lines on the left, displaying the exact price of the Stop, Entry, and each Take-Profit level, and updating their horizontal position as the trade progresses.
An upward-pointing "▲ BUY" label appears below the breakout bar on a bullish break, and a downward-pointing "▼ SELL" label appears above the breakout bar on a bearish break.
An optional on-chart dashboard table displays the ticker and timeframe, whether the Lock Signal feature is active, the current fan orientation, the origin price, the live value of the Leg 3 trigger line, the current entry, stop, a live risk-to-reward progress bar showing how far price has travelled toward TP3 relative to the initial risk, the volume filter status, and the number of bars elapsed since the last signal.
📖 How to Use
A signal is generated only when price decisively closes beyond the Leg 3 trigger line of an established fan, so treat the fan's orientation, shown both by the line color and by the Fan State readout on the dashboard, as the prevailing structural bias before a break occurs. When a bullish break prints, the suggested plan is to consider a long entry near the displayed Entry line, with the Stop-Loss line defining the invalidation point below and the three Take-Profit lines offering staged exit levels as the move develops. A bearish break mirrors this in the opposite direction for short setups.
The R:R Progress bar on the dashboard is useful for monitoring an active trade at a glance: it fills from 0% toward 100% as price advances from entry toward the TP3 target, and its color shifts from red through amber to teal as the trade's risk-to-reward ratio improves. If the Lock Signal option is enabled, the script freezes the most recently confirmed signal and its levels in place rather than allowing a new one to overwrite them, which can help when you want to manage an open position without the on-chart levels shifting. Because signals are confirmed only on closed bars, always wait for bar close before acting on a fresh line break rather than reacting to an in-progress wick.
Enabling the optional Volume and HTF filters will typically reduce signal frequency while raising the bar for confirmation, so consider testing both configurations to see which better matches the behavior of the instrument and timeframe you trade.
⚙️ Inputs and Settings
Pivot Len — Controls how many bars on each side must confirm a swing high or low. Smaller values detect pivots faster but produce noisier, more frequent fan structures; larger values produce fewer but more structurally significant pivots.
Max Fan Lookback — The maximum age, in bars, that a fan's origin point can have and still be considered valid. Lowering this keeps the script focused on recent structure only.
Min Leg % — The minimum percentage price move required between the origin and the first leg for a fan to be accepted, filtering out fans built on insignificant price movement.
Use Vol Filt / Vol Avg Len / Vol Mult — Enables a volume confirmation requirement, comparing current volume against its moving average over the specified length, multiplied by the chosen factor.
Use HTF Filt / HTF — Enables a higher-timeframe trend alignment requirement, comparing the breakout close against the prior confirmed close on the chosen higher timeframe.
SL ATR Buf — The ATR-based buffer added beyond the nearest fan leg when placing the stop-loss, giving the stop room to avoid minor wick noise.
SL Max ATR — A ceiling, expressed in ATR multiples, on how far the stop-loss can be placed from entry, preventing outsized stops on unusually wide fans.
ATR Len — The lookback length used for the ATR calculation that feeds both the stop buffer and the stop cap.
TP1 R / TP2 R / TP3 R — The risk-multiple distances used to place the three take-profit levels relative to the initial risk unit between entry and stop.
Lock Signal — Freezes the current signal and its associated levels in place, preventing a new signal from overwriting them until manually disabled.
Show Fan Lines / Show Trade Levels / Show Labels — Independently toggle the visibility of the fan structure lines, the entry/stop/TP levels, and their accompanying price labels.
Show Dash / Dash Pos — Toggle the on-chart dashboard and choose which corner of the chart it is anchored to.
A full set of color inputs is available to customize the fan lines, trade level lines, fill zones, signal labels, and dashboard appearance to match your own chart theme.
🔍 Deconstruction of the Underlying Scientific and Academic Framework
The fan principle applied here descends from classical technical analysis literature on trendline construction, most notably the Gann fan and Andrews' Pitchfork family of tools, which share the premise that connecting a structural origin point to successive swing extremes produces a family of trendlines whose slopes carry predictive meaning about the trend's rate of change. Where this script departs from those older, largely manual techniques is in how the origin and legs are selected: rather than relying on the analyst's subjective choice of anchor points, pivot selection here is fully algorithmic, using a symmetric local-extremum test to ensure each point used is objectively the highest or lowest price within its surrounding window.
The core statistical assumption underlying any trendline-break system is that price trends exhibit a degree of serial correlation, meaning that the rate of ascent or descent between swing points tends to persist for some period before mean-reverting or reversing, and that a violation of the most recent, steepest rate of change is informative about a shift in that underlying process. This is conceptually related to the broader family of change-point detection methods used in time-series analysis, where a structural break in a fitted trend line is used as a signal that the data-generating process has shifted regime. The ATR-based position sizing layered on top draws from the well-established use of Average True Range as a volatility-normalized unit of risk, a concept popularized in behavioral and quantitative trading literature as a way of scaling stop and target distances to the instrument's own recent volatility rather than using arbitrary fixed-point distances, which do not generalize across different assets or market conditions.
⚠️ Disclaimer
All provided scripts and indicators are strictly for educational exploration and must not be interpreted as financial advice or a recommendation to execute trades. We expressly disclaim all liability for any financial losses or damages that may result, directly or indirectly, from the reliance on or application of these tools. Market participation carries inherent risk where past performance never guarantees future returns, leaving all investment decisions and due diligence solely at your own discretion. אינדיקטור
EonMetrics CISDCISD — Change In State of Delivery
CISD marks the moment the market's delivery flips. Price is "delivered" in one direction through a series of consecutive same-direction candles; the open of the first candle of that series is the delivery level. When a later candle closes back through that level, the state of delivery has changed — that close is the CISD. The level is then kept on the chart and tracked as support or resistance, with retest and invalidation handling.
🔶 HOW IT WORKS
The script counts consecutive same-direction candles (by candle body, by default). When such a series ends, the open of its FIRST candle is remembered as the delivery level, shown as a dotted pending line. When a later candle CLOSES through that level against the series direction, the CISD is confirmed — the level is drawn and tracked as support or resistance from that bar on.
🔶 HOW CISD DIFFERS FROM MSS / BOS
Structure tools (MSS, BOS, CHoCH) need a swing pivot: a high or low must form and be confirmed by candles on both sides before a break of it means anything. CISD needs no pivot at all — the reference level comes straight from the candle series itself (the open of the first candle of the last delivery leg). That is why a CISD typically confirms earlier than a structure shift: the close through the series origin often prints several bars before the equivalent MSS. Earlier also means less filtered — CISD is a faster, more granular read of the same idea, not a replacement for structure.
🔶 WHAT IT DOES
Series detection — counts consecutive same-direction candles (direction by candle body, or optionally close-vs-previous-close). A series qualifies as delivery once it reaches the minimum length you set. A doji can either ride the series or end it — your choice.
Pending level (dotted) — as soon as a qualifying series ends, the open of its first candle becomes the candidate level, drawn as a dotted line. This is where the next CISD would confirm. Nothing is signaled yet — the line just shows you what the market has to close through.
Confirmed CISD (solid) — when a candle closes through the pending level, the level turns solid, gets its CISD label, and starts being tracked: bullish CISD levels act as support, bearish as resistance.
Level lifecycle — an active level extends bar by bar. When price fully leaves it and later returns to touch it, that touch is marked as a retest (wick-based). When a candle closes back through the level, it is invalidated — removed, or kept dimmed on the chart if you prefer to study failures. An optional lifetime cap quietly expires old levels.
Current delivery state — an optional floating label shows the running series direction and its candle count (e.g. "Bearish x4").
🔶 NON-REPAINTING
The entire engine advances on confirmed bars only. Nothing is drawn, moved or deleted intrabar: a pending level appears only after its series is complete, a CISD confirms only on a closed candle, and retests/breaks are evaluated on closed candles. What you see on a historical chart is exactly what you would have seen live.
🔶 ALERTS
Six alert conditions: bullish/bearish CISD confirmed, bullish/bearish level retested, bullish/bearish level broken.
🔶 HOW TO USE
1. Keep Min Series Length at 2 for a responsive read, raise to 3-4 to only mark the strongest delivery legs.
2. Watch the dotted pending line — it tells you in advance which level a close has to take out for delivery to flip.
3. After a confirmed CISD, the level itself is the tradeable information: bullish CISD levels tend to act as support on the retest, bearish as resistance.
4. Set alerts on confirmations and retests instead of watching the chart.
🔶 SETTINGS
Detection (min series length, candle direction mode, doji handling) · Levels (max active per side, lifetime, keep broken, retest markers, pending line) · Style (colors, line width, label size, delivery-state label).
This tool annotates delivery levels. It does not predict direction, does not generate entries and has no targets — what you do at a level is your decision.
Part of the EonMetrics toolset.
אינדיקטור
Major Historical S&R ZonesMajor Historical Support & Resistance Zones
Major Historical Support & Resistance Zones is designed to objectively identify and rank the most significant historical support and resistance areas on any market or timeframe. Rather than relying on manually drawn horizontal lines, the indicator automatically analyses historical price action, groups significant reactions into zones, and scores each zone based on its historical importance.
The indicator looks for meaningful pivot highs and lows, measures the strength of the subsequent price reaction using ATR (Average True Range), evaluates rejection quality through wick analysis, and clusters nearby reactions into a single support or resistance zone. When multiple significant reactions occur around the same price level, the zone becomes stronger and receives a higher score.
Unlike traditional support and resistance indicators that simply draw every swing high and low, this indicator attempts to filter out market noise and highlight only the price areas that have repeatedly influenced market direction.
Features
* Automatically detects major historical support and resistance zones.
* Clusters multiple historical reactions into a single zone.
* Scores each zone based on reaction quality and historical significance.
* Counts the number of independent reactions ("Hits") at each level.
* Identifies Support/Resistance Flip zones where price has historically acted as both support and resistance.
* Adjustable ATR sensitivity and clustering distance.
* Built-in colour and scoring guide that can be enabled or disabled from the settings.
Colour Guide
🟩 Green Zone
* Price is currently above the zone.
* The zone is acting as historical support.
🟥 Red Zone
* Price is currently below the zone.
* The zone is acting as historical resistance.
🟨 Orange Zone
* Price is currently trading inside the historical zone.
* This represents a decision area where the market is testing historical support or resistance.
Understanding the Score
Each zone receives a strength score based on:
* Size of the historical reaction.
* Quality of price rejection (wick analysis).
* Number of independent reactions.
* Support/Resistance Flip bonus.
General interpretation:
* 0–3 = Weak
* 3–5 = Minor
* 5–7 = Good
* 7–10 = Strong
* 10–15 = Very Strong
* 15+ = Exceptional
Higher scores indicate areas where price has historically shown stronger reactions.
Understanding Hits
Hits represent the number of separate significant reactions that occurred within the zone.
General guide:
* 1 = Single historical reaction
* 2 = Confirmed level
* 3 = Strong level
* 4–5 = Very strong level
* 6+ = Major historical level
More hits generally indicate greater historical recognition of that price area.
S/R Flip
When a zone displays S/R Flip, it means that the same price area has historically acted as both:
* Support
* Resistance
These zones often represent some of the strongest historical price levels because market participants have repeatedly recognised them from both directions.
Suggested Workflow
For the best results:
1. Open the Weekly chart to identify the strongest long-term support and resistance zones.
2. Switch to the Daily chart to refine those major levels.
3. Use the 4H, 8H, or 12H chart for additional precision.
4. Execute trades using your preferred lower timeframe confirmation.
This top-down approach helps maintain focus on the most significant historical levels before refining entries.
Inputs
The indicator provides several adjustable settings:
* Pivot Strength – Controls how significant a swing must be before it is considered.
* ATR Length – Used to normalise reaction size across different markets.
* Minimum Reaction ATR – Filters out weak reactions.
* Cluster Distance ATR – Controls how close reactions must be before they are grouped together.
* Zone Width ATR – Determines the thickness of each support/resistance zone.
* Minimum Hits – Minimum number of reactions required before displaying a zone.
* Minimum Score – Minimum strength score required before displaying a zone.
* Display Options – Toggle labels and the built-in legend on or off.
Best Practices
This indicator is designed to identify historically important price zones, not generate buy or sell signals.
The strongest trading opportunities often occur when:
* High-scoring zones align with your own market structure analysis.
* Higher timeframe zones overlap with lower timeframe confirmations.
* Price shows clear rejection or acceptance at the identified historical levels.
As with all technical analysis tools, this indicator should be used alongside sound risk management and your broader trading methodology rather than in isolation.
אינדיקטור
Institutional Flow MatrixInstitutional Flow Matrix is an open-source market-analysis framework designed to organize trend direction, confirmed market structure, institutional price zones, momentum, and location within a dealing range into one readable chart.
The purpose of this indicator is not to predict every price movement or generate constant entries. It is designed to answer a more practical sequence of questions:
1. What is the current directional bias?
2. Is market structure supporting that direction?
3. Is price trading from a meaningful location?
4. Has price returned to an active institutional zone?
5. Is momentum aligned with the proposed setup?
The script combines these questions into a structured workflow while keeping the default chart intentionally clean.
WHY THIS INDICATOR WAS BUILT
Many market-structure indicators display every swing, imbalance, liquidity level, zone, and signal at the same time. While that information can be useful for detailed analysis, it can also make the chart difficult to interpret during live trading.
Institutional Flow Matrix was built around a visual hierarchy:
* Directional bias is the primary layer.
* Active Order Blocks are the principal reaction zones.
* Momentum is a confirmation layer.
* Premium and Discount provide market location.
* Fair Value Gaps, liquidity pools, sweeps, and higher-timeframe levels are optional study tools.
The default Balanced preset focuses on the information most relevant to a directional pullback setup. Minimal mode removes most supporting visuals for live execution. Full mode reveals the additional market-structure tools for deeper analysis.
WHAT MAKES THE IMPLEMENTATION DIFFERENT
The individual concepts used by this script, including pivots, moving averages, ATR trend filters, Order Blocks, Fair Value Gaps, and Premium/Discount ranges, are established forms of technical analysis.
The original contribution of Institutional Flow Matrix is how those components are synchronized and managed as one decision framework.
Key design elements include:
* Confirmed structure events rather than unconfirmed swing guesses.
* A persistent directional state requiring agreement between structure, EMA alignment, and an ATR-based trend filter.
* Order Block freshness validation before a zone is accepted.
* Separate visual duration and analytical lifetime controls for zones.
* Automatic mitigation and expiration of old zones.
* Limited drawing-object counts to prevent long-term chart clutter.
* A weighted confluence model centered on trend, structure, zone interaction, market location, and momentum.
* Three visual presets that change the information hierarchy without changing the underlying calculations.
* Confirmed-bar signals and event-based alerts.
This is not intended to be a collection of unrelated indicators. Each module has a defined role in the same setup process.
DIRECTIONAL BIAS
The chart background represents the script's confirmed directional state.
A bullish state requires agreement between:
* Bullish market structure.
* Fast EMA positioning above the slow EMA.
* Bullish ATR trend conditions.
A bearish state uses the opposite conditions.
The background changes only after the required conditions are confirmed. A larger BUY or SELL label marks a confirmed change in this directional state.
These shift labels are different from the smaller confluence signals. A shift label identifies a change in directional bias. A confluence signal requires additional location, zone, and momentum conditions.
MARKET STRUCTURE
Confirmed pivot highs and lows form the structure engine.
The script tracks:
* Higher Highs
* Higher Lows
* Lower Highs
* Lower Lows
* Breaks of Structure
* Changes of Character
A bullish break occurs when a confirmed bar closes above the latest unbroken confirmed swing high. A bearish break occurs when a confirmed bar closes below the latest unbroken confirmed swing low.
Swing labels are retrospective by design. A pivot can only be confirmed after the selected number of right-side bars has closed. Once confirmed, its label is placed on the candle where the swing originally occurred. The label was not known on that earlier candle.
ORDER BLOCKS
Order Blocks are the primary reaction zones in the indicator.
After a confirmed structure break or qualifying displacement event, the script searches backward for an opposing candle. A candidate candle can be filtered by:
* Candle range relative to ATR.
* Body size as a percentage of candle range.
* Optional volume expansion.
* Wick-based or body-based zone construction.
Before accepting the candidate, the script checks whether price has already invalidated it. This prevents many stale zones from being created after the fact.
Active Order Blocks can be invalidated by either:
* A close beyond the opposite edge.
* A wick beyond the opposite edge.
The selected mitigation method is used consistently during both zone creation and live zone management.
Order Blocks have separate controls for visual extension and analytical age. This allows users to control how long a box remains visible independently from how long it remains eligible for signal calculations.
PREMIUM, DISCOUNT, AND EQUILIBRIUM
The script creates a rolling dealing range from the highest high and lowest low over the selected lookback.
The range is divided into:
* Premium: the upper portion of the range.
* Discount: the lower portion of the range.
* Equilibrium: the 50% midpoint.
Premium and Discount do not generate trades by themselves. They provide location.
In general:
* Bullish setups receive stronger contextual support in Discount.
* Bearish setups receive stronger contextual support in Premium.
* Equilibrium represents the midpoint of the current rolling range.
Because the range is rolling, its boundaries can change when a new lookback high or low is formed.
MOMENTUM RIBBON
The momentum module uses three exponential moving averages and an ATR-normalized difference between the fast and slow averages.
Bullish momentum requires:
* Fast EMA above the slow EMA.
* Positive normalized momentum.
* Momentum above its signal average.
Bearish momentum uses the opposite conditions.
Diamond markers identify confirmed momentum crossings. The ribbon is intended as confirmation rather than a standalone entry system.
CONFLUENCE SIGNALS
The script calculates a 0-100 Confluence Score from five conditions:
* Directional bias: 25 points.
* Market structure: 15 points.
* Momentum alignment: 15 points.
* Active Order Block interaction: 25 points.
* Premium or Discount location: 20 points.
The score measures condition alignment. It is not a probability, win rate, accuracy estimate, or forecast of future performance.
By default, BUY and SELL signals require:
* Confirmed directional bias.
* Matching confirmed structure.
* Interaction with an active Order Block.
* Correct Premium or Discount location.
* Matching momentum.
* Minimum Confluence Score.
* Completion of the selected signal cooldown.
Signals are displayed only when the complete condition changes from false to true. This prevents repeated labels while the same setup remains active.
OPTIONAL ADVANCED MODULES
Full mode provides additional analytical tools:
* Fair Value Gaps with ATR size filtering.
* Equal-high and equal-low liquidity pools.
* Confirmed liquidity sweeps.
* BOS and CHoCH labels.
* HH, HL, LH, and LL labels.
* Previous day, week, and month highs and lows.
* Optional momentum candle coloring.
These features are disabled or hidden from the default Balanced view to preserve readability.
VISUAL PRESETS
Minimal:
Designed for traders who want the least chart interference. It suppresses the background, ribbon, Premium/Discount display, trailing line, dashboard, and advanced structure annotations.
Balanced:
The default view. It emphasizes directional background, active Order Blocks, Premium/Discount context, momentum ribbon, diamonds, signals, and the dashboard.
Full:
Designed for detailed study. It adds structure labels, BOS/CHoCH events, Fair Value Gaps, liquidity tools, higher-timeframe levels, and optional candle coloring.
FOR NEWER TRADERS
A simple workflow is:
1. Start with the Balanced preset.
2. Use the background to identify the current directional bias.
3. Wait for price to return to an Order Block matching that bias.
4. Check whether price is in Discount for a bullish setup or Premium for a bearish setup.
5. Confirm that the momentum ribbon agrees.
6. Treat the signal as a point for further analysis, not an automatic order.
The equilibrium line can be used as a reference for the midpoint of the current dealing range. It is not automatically an entry or exit instruction.
FOR ADVANCED TRADERS
Experienced users can customize:
* Pivot confirmation sensitivity.
* ATR and EMA trend parameters.
* Wick-based versus body-based Order Blocks.
* Displacement-created zones.
* Candle body, range, and volume filters.
* Close-based versus wick-based mitigation.
* Zone visual duration and analytical age.
* Premium and Discount percentages.
* Fair Value Gap size.
* Liquidity sensitivity.
* Momentum lengths.
* Individual signal requirements.
* Minimum confluence threshold.
* Signal cooldown.
* Higher-timeframe reference levels.
Advanced users can also disable individual hard requirements and use the Confluence Score as a more flexible filtering system.
ALERTS
Alert conditions are included for:
* Break of Structure.
* Change of Character.
* New Order Block.
* BUY signal.
* SELL signal.
* Bias-aligned Order Block entry.
* Trend and momentum confluence.
* Liquidity sweep.
Alerts should be created using Once Per Bar Close when confirmed signals are required.
NON-REPAINTING AND TIMING
Structure breaks, directional shifts, zone creation, zone mitigation, momentum events, and confluence signals are evaluated on confirmed bars.
Pivot-based swing labels require future bars to confirm that a swing occurred. After confirmation, the label is displayed on the original pivot candle. This is delayed confirmation with retrospective placement, not advance knowledge of the swing.
Previous-period levels use completed higher-timeframe data.
LIMITATIONS
* This indicator does not predict future prices.
* It does not calculate position size, stop loss, or account risk.
* It is not a complete automated trading system.
* Signals can fail during volatile, illiquid, or range-bound conditions.
* Rolling Premium, Discount, and equilibrium levels can move when the lookback range changes.
* Confirmed pivots introduce an intentional delay.
* Order Block definitions vary among trading methodologies; this script uses the documented candle-search and filtering rules described above.
* Volume behavior differs across asset classes and data providers.
* Parameter settings that work on one symbol or timeframe may not be appropriate for another.
Suggested starting points are the 15-minute and 1-hour charts for intraday analysis and the 4-hour chart for broader swing structure. Users should test settings on their own symbols and trading sessions.
OPEN-SOURCE PURPOSE
The script is published open-source so traders can inspect the calculations, understand why signals occur, verify the confirmed-bar methodology, and adapt the framework for their own research.
The goal is to provide a readable and transparent market-structure workflow rather than a black-box prediction tool.
DISCLAIMER
This indicator is provided for educational and analytical purposes only. It is not financial advice and does not guarantee profitable results. Historical chart behavior does not ensure future performance. Users are responsible for their own analysis, testing, risk management, and trading decisions.
אינדיקטור
Adaptive Trend Rails [NICK789]Adaptive Trend Rails
OVERVIEW
Adaptive Trend Rails is a market-structure and break-and-retest framework built around one shared price channel. It is designed to answer four practical questions:
1. Which direction currently controls the chart?
2. What exact price level would confirm continuation or a trend change?
3. Is pressure building against the active trend before that change is confirmed?
4. Has price completed a valid breakout, retest and rejection sequence that can be turned into a structured trade plan?
This is not a collection of unrelated indicators placed on the same chart. The rail engine is the foundation of the script, and every additional component—equilibrium, reversal pressure, trend-change quality, multi-timeframe context and the break-and-retest plan—uses information derived from that same structure.
CORE RAIL ENGINE
The script builds an upper and lower rail from the highest high and lowest low of an adaptive lookback. The lookback changes according to the chart timeframe, while the user-selected Narrow, Medium or Wide setting adjusts how quickly the rails react.
A bullish break occurs when price crosses above the previous upper rail. A bearish break occurs when price crosses below the previous lower rail.
The script then classifies each break according to the existing trend state:
• A break in the current direction is treated as continuation.
• A break against the current direction is treated as a trend change.
Because the decision level is taken from the previous rail value rather than the rail currently expanding with price, users can see the actual level that must be crossed. The live “Continue?” and “Trend Change?” guides therefore act as decision levels, not predicted targets.
ADAPTIVE EQUILIBRIUM
The centre line is not a simple midpoint or fixed moving average.
First, the script measures where price is positioned between the active upper and lower rails. That normalized position is then smoothed using EMA and volume-weighted information, with a WMA fallback when volume-weighted data is unavailable. The accepted position is shifted toward the centre and constrained so the equilibrium cannot sit directly on the outer rails.
The resulting line represents an adaptive accepted-value area inside the current structure.
Equilibrium is used throughout the script:
• Its slope helps determine whether internal momentum is rising or falling.
• Its curl helps identify a possible change in pressure.
• Retest plans require price to remain on the correct side of equilibrium.
• Optional entry filtering can require equilibrium to slope in the proposed trade direction.
• A pending retest is cancelled when price loses the required equilibrium relationship.
For this reason, equilibrium is part of the calculation engine and not merely a decorative average.
REVERSAL-PRESSURE WARNINGS
The yellow reversal dots are early warnings, not reversal signals.
While a trend is active, the script measures opposing pressure using a weighted combination of:
• Candle closing location
• Upper or lower wick rejection
• Directional candle-body strength
• Relative volume participation
• Relative candle-range expansion
• Equilibrium slope or curl
• Price location within the rail structure
A bearish warning is only considered while the rail trend is bullish and price is positioned in the upper portion of the structure. A bullish warning is only considered while the rail trend is bearish and price is positioned in the lower portion.
The warning means pressure is building against the current trend. It does not change the trend by itself. Price must still close through the displayed Trend Change level before the rail state is considered reversed.
A cooldown is applied to prevent repeated warning dots from being printed on every nearby candle.
TREND-CHANGE QUALITY
When a confirmed trend change occurs, the script assigns a compact quality reading based on the breakout candle.
The score combines:
• Relative volume
• Relative candle range
• Directional body strength
• Closing location in the breakout direction
The resulting label is shown as Weak, Moderate, Good or Strong.
The tooltip also describes the character of the breakout, such as Clean Break, Expansion, Absorption, Weak Close or Low Participation. This is intended to provide context, not to guarantee that a strong-rated break will continue.
MULTI-TIMEFRAME CONTEXT
The horizontal trend strip rebuilds the same rail-state method across nine timeframes:
1 minute, 5 minutes, 15 minutes, 30 minutes, 1 hour, 2 hours, 4 hours, 1 day and 1 week.
This is important because the table is not mixing unrelated moving-average or oscillator definitions. Every timeframe is evaluated with the same upper-rail/lower-rail breakout method used on the chart.
The script also assigns a practical paired timeframe to the active chart—for example, a 1-minute chart is paired with 5 minutes, a 5-minute chart with 15 minutes, and a 15-minute chart with 1 hour.
Paired-timeframe information is warning-only. It does not silently block, delay or change an entry. When a plan triggers against the paired rail trend, the table and dedicated alert identify that conflict so the trader can make the final decision.
BREAK-AND-RETEST PLAN
The optional trade-plan engine does not enter immediately when a rail breaks.
Its sequence is:
1. Price closes through a continuation or trend-change level.
2. The exact broken rail level is stored.
3. Price must return on a later candle and touch or sweep that level.
4. The candle must reject the level and close back through it in the breakout direction.
5. Price must remain on the correct side of equilibrium.
6. Optional filters check equilibrium slope and whether the rail structure is wide enough relative to the configured stop distance.
All confirmed setups are labelled simply as “RETEST” to avoid implying that one setup carries a guaranteed grade or outcome. The tooltip still identifies whether the retest followed a Trend Change or a Continuation break.
The user may enable both setup types or restrict the engine to trend changes, continuations, longs or shorts.
Pending setups expire after the selected number of bars. They are also cancelled when the rail trend changes or price invalidates the required equilibrium relationship. This prevents an old breakout level from remaining armed after its original context has disappeared.
RISK AND PLAN DISPLAY
When a retest entry is confirmed, the script can display:
• Entry level
• ATR-adaptive or fixed-tick stop
• Reward/risk or fixed-tick target
• Active-plan direction
• Target-hit or stop-hit result
The default ATR Adaptive method scales the stop to current volatility and calculates the target from the selected reward/risk ratio. This makes the plan transferable across forex, metals, crypto, stocks and futures even when their price increments differ. A Fixed Ticks mode remains available for traders who intentionally use exchange tick distances on instruments such as futures. All values remain examples and must be adjusted for the instrument, timeframe and personal risk limits.
The tool is an indicator, not an automated strategy. It does not calculate position size, brokerage fees, commissions, spread or slippage, and it does not place orders.
HISTORICAL REVIEW
Historical plans and review statistics are optional and disabled by default.
The review panel counts completed target and stop outcomes visible in the loaded chart data and reports the net result in R-multiples. Replaced plans are excluded. If both the target and stop are touched within the same ordinary chart candle, the script records the stop first because the true intrabar sequence cannot be known from standard OHLC data.
Win rate is hidden until a minimum sample is available. These statistics are intended for chart review and configuration comparison only. They are not a full strategy backtest and should not be presented as expected future performance.
HOW TO USE
A simple workflow is:
1. Select Narrow, Medium or Wide rails according to the desired reaction speed.
2. Read the active rail colour to identify the current structural direction.
3. Use the Continue and Trend Change levels as the prices that would confirm the next structural event.
4. Treat reversal dots as preparation warnings only.
5. Use the quality label to inspect the participation and candle character of a confirmed trend change.
6. Check the multi-timeframe strip for broader alignment or conflict.
7. Enable the Break & Retest Plan when structured retest signals, ATR-adaptive or fixed-tick levels and review tools are required.
8. Adjust stop and target ticks for the traded symbol rather than assuming the defaults fit every market.
DEFAULT DISPLAY
The default view focuses on the rails, adaptive equilibrium, live decision levels, trend-change quality and multi-timeframe context.
Candle colouring, the trade-plan engine, historical plans and review statistics are optional so users can keep the chart clean and enable only the tools relevant to their workflow.
ALERTS
Alerts are provided for:
• Bullish and bearish continuation
• Bullish and bearish trend change
• Bullish and bearish reversal pressure
• Long and short break-and-retest entries
• Entries against the paired timeframe
• Replacement of an unresolved plan by an opposite valid setup
• Target hit
• Stop hit
Confirmed continuation, trend-change and retest-entry alerts are intended for candle-close use. Reversal-pressure warnings are intentionally earlier and should always be treated as unconfirmed until the relevant Trend Change level is closed through.
LIMITATIONS
Adaptive Trend Rails is a structure and planning tool, not a prediction engine.
Rail breaks can fail, strong breakout candles can reverse, and multi-timeframe alignment does not guarantee continuation. ATR-based distances expand and contract with recent volatility, while fixed-tick distances behave differently across instruments and feeds. Historical review results are displayed in R-multiples and depend on the loaded chart, selected settings and available OHLC data.
Users should combine the tool with their own risk management, market-session awareness and execution rules.
ORIGINAL CONTRIBUTION
The original purpose of this script is to turn one adaptive rail structure into a complete decision sequence:
current trend → live confirmation level → opposing-pressure warning → confirmed structural break → quality context → multi-timeframe comparison → delayed retest validation → risk-plan display → optional historical review.
Each component exists to explain or validate another part of that sequence. The script is therefore designed as one integrated framework rather than a mashup of independent indicators. אינדיקטור
NIMBUS [ThrowMaster]NIMBUS — Ichimoku, Reimagined
Classic Ichimoku is brilliant at one question: "Where is the market right now — above, below, or inside equilibrium?" It is far weaker at a second question every trader actually asks: "What is the market about to do?" NIMBUS keeps the timeless Ichimoku framework intact and adds three dimensions built to close that gap — while staying, above all, honest about what it is: a context compass, not a signal service.
━━━━━━━━━━━━━━━━━━━━━━━━
WHAT NIMBUS ADDS
━━━━━━━━━━━━━━━━━━━━━━━━
⭐ Kumo Calendar — Twist Countdown
Here is a fact most traders overlook: the cloud in front of price is already fully drawn. It is built entirely from bars that have ALREADY closed, then shifted forward. That means the next Kumo twist — the moment Senkou Span A and B swap places — is knowable in advance. NIMBUS scans the forward cloud and counts the exact number of bars until that twist reaches price, and warns you when a thin (weak-support) section is approaching. Ichimoku's most-criticised trait, its lag, becomes a schedule you can read ahead of time.
🩵 Breath — Volume-Reactive Cloud
A traditional cloud shows only price geometry; two identical-looking clouds can hide wildly different conviction. NIMBUS makes the cloud breathe: it grows more solid on high-participation bars and fainter on quiet ones, using a rolling volume percentile. Strength becomes something you feel at a glance, not something you have to calculate. (If a symbol reports no volume, the cloud simply falls back to a fixed opacity — no errors, no false readings.)
🎯 Tenkan / Kijun Cross Clarity
The Tenkan–Kijun cross is one of Ichimoku's core events, yet on most charts it hides in a tangle of lines. NIMBUS marks it precisely: a teal circle at the exact price and bar of a bullish cross, coral for bearish. No hunting, no guessing.
◈ Alignment Hints
When four independent Ichimoku dimensions agree — price vs cloud, Tenkan vs Kijun, cloud colour, and the lagging read — AND price reclaims or loses the cloud on a confirmed bar, NIMBUS prints a small diamond. Think of it as a puzzle-game hint: a nudge to look at the right place at the right time. It is deliberately NOT a buy or sell command, and it never gives a target.
━━━━━━━━━━━━━━━━━━━━━━━━
HOW IT WORKS
━━━━━━━━━━━━━━━━━━━━━━━━
NIMBUS uses the standard Ichimoku engine — Tenkan (9), Kijun (26), Senkou Span A/B, and the lagging span, all fully adjustable. "Price vs cloud" always compares price to the cloud value formed 25 bars ago — the cloud actually sitting beneath price — so the reading reflects real, settled structure. The Breath layer reads a 100-bar volume percentile. The Twist Countdown walks the already-shifted forward cloud bar by bar. The dashboard summarises everything in one compact, theme-aware panel with a mobile Compact Mode.
━━━━━━━━━━━━━━━━━━━━━━━━
HOW TO USE
━━━━━━━━━━━━━━━━━━━━━━━━
• Read the cloud for trend context: above = bullish structure, below = bearish, inside = balance/chop.
• Watch the Twist Countdown to anticipate when the cloud's support/resistance character is about to flip — useful for planning, not for firing blind.
• Let Breath tell you whether a move carries participation or is running on fumes.
• Treat Hints as a reason to zoom in and do your own analysis, never as an instruction.
• Combine with your own risk management. NIMBUS describes context; your plan decides the trade.
━━━━━━━━━━━━━━━━━━━━━━━━
ON REPAINTING (honest)
━━━━━━━━━━━━━━━━━━━━━━━━
Once a bar closes, every Tenkan/Kijun/Span value is fixed and never redrawn. Hints and cross circles are all confirmed on bar close, so a printed mark cannot later disappear. The forward cloud is built only from closed bars, so it is fixed the moment it appears. Like all Ichimoku tools, values on the CURRENT, still-forming bar update in real time until that bar closes — this is inherent to the framework, not hidden repainting, and it is documented directly in the code comments.
━━━━━━━━━━━━━━━━━━━━━━━━
WHAT MAKES IT ORIGINAL
━━━━━━━━━━━━━━━━━━━━━━━━
NIMBUS is not another line pack bolted onto Ichimoku. The Kumo Calendar reframes the forward cloud as a countdown rather than a static shape; Breath encodes participation into the cloud's opacity; and the whole tool is presented as an explicit, self-aware CONTEXT instrument — it tells you what the market is, and refuses to pretend it knows your trade. The code is fully open for you to read, study, and learn from.
━━━━━━━━━━━━━━━━━━━━━━━━
NOTE
━━━━━━━━━━━━━━━━━━━━━━━━
No indicator predicts the future or guarantees results, and NIMBUS makes no such claim. It is a decision-support and context tool. Markets involve risk; always use independent judgement and sound risk management. Not financial advice.
אינדיקטור
Trendline Architect [Quantum Algo]Trendline Architect
====================================================
🔶 OVERVIEW
Trendline Architect is an automatic trendline indicator that does what most trendline tools skip: it validates every line before drawing it, makes each line earn its status through real touches, grades every breakout by quality, and then automates the break-and-retest sequence that trendline traders normally track by hand. Lines are born as dotted candidates, promoted to solid confirmed trendlines only after the market validates them with a third touch, graded on breakout, kept on a retest watch after they break, and paired into parallel channels automatically — all with a deliberately quiet chart: one-letter signals whose full context lives in hover tooltips.
The problem this script solves is trendline spaghetti and trendline noise. Automatic trendline tools typically draw every pivot-to-pivot connection and alert on every violation. This engine rejects invalid lines at birth, refuses duplicates, caps how many lines can exist per side, silences the breaks of unproven lines by default, and filters weak breakouts by grade — so what remains on the chart is only what the market has actually respected.
🔶 WHAT IS A TRENDLINE BREAK AND RETEST?
A trendline connects successive swing points and acts as dynamic support or resistance while price respects it. A breakout occurs when price closes decisively through the line. The retest is what disciplined traders wait for next: price returning to the broken line from the other side and rejecting — old support acting as new resistance, or old resistance reclaimed as support. That return-and-reject is one of the most traded patterns in classical charting, and this engine detects the entire sequence automatically: validated line, graded break, watch window, confirmed retest.
🔶 WHY THIS SCRIPT IS ORIGINAL
1. Geometric validity at birth. A candidate line is rejected before it is ever drawn if any candle close violated the segment between its two anchor pivots. Lines that were never respected never reach the chart.
2. Touch-earned lifecycle. Every line starts as a dotted, untagged candidate. Each validated touch — a wick into tolerance with a close that respects the line — is counted, and only at the configured touch count is the line promoted: solid, thicker, fully colored, with a live ×N touch tag. The chart itself shows which lines the market obeys.
3. Anti-spaghetti engineering. Duplicate candidates with similar slope and position are refused, each side is capped at a configurable number of active lines with the weakest evicted first, and stale lines expire by age. The chart stays readable on every timeframe.
4. Breakout quality grading. Every breakout is scored from three observable components — volume z-score, penetration depth in Average True Range units, and breakout candle body ratio — into grades A, B, and C. Grade A signals highlight in the accent color.
5. A retest engine. Broken lines are not deleted; they turn into gray watch lines for a configurable window. A return to the broken line with a rejecting close prints the Retest signal — the classic polarity flip, automated.
6. Silence by default, depth on demand. Signals print as single letters — B for breakout, R for retest — with the full context (direction, grade, volume, penetration) in the hover tooltip. Two noise filters ship enabled: breaks of unconfirmed lines retire silently, and breakouts below a minimum grade stay off the chart and out of the alerts.
7. Automatic channel detection. When an active support line and resistance line run parallel within a slope tolerance, the engine fills the channel between them and reports it on the dashboard.
8. A live architecture dashboard. Active support and resistance counts, the nearest line with its distance in Average True Range units, a trend read derived from confirmed line slopes, the last break grade, the retest watch count, and channel status — in a compact, fully themeable panel.
🔶 HOW IT WORKS
Line construction: Confirmed swing pivots anchor every candidate line. Each new pivot is paired with the previous same-side pivot, the segment is checked for historical violations, duplicates are rejected, and side capacity is enforced before the line is created.
Touch validation: A touch counts only when the wick enters the tolerance band around the line and the close still respects it. Touches accumulate on the line's tag; the confirming touch promotes the line and, from that point, validated touches are marked with dots.
Breakouts: A close through the line beyond the buffer triggers the break. Confirmed lines produce graded signals; forming lines retire silently when the default filter is on. The broken line converts to a gray dashed watch line.
Retests: Within the watch window, a return to the broken line with a rejecting close prints R — upward reclaim of broken resistance, or downward rejection at broken support. Watch lines that see no retest expire quietly.
Channels: Active opposite-side lines are compared by slope; the closest parallel pair within tolerance is filled as a channel.
Non-repainting: Pivots require confirmation, and all touches, promotions, breaks, and retests are evaluated on closed bars only. Once printed, nothing moves.
Chart hygiene: Completed lines, touch dots, and signals are all capped by input, keeping the chart clean and the auto-scale anchored to current price.
🔶 HOW TO USE IT
1. Works on any market — cryptocurrency, forex, gold, indices, stocks, futures — and any timeframe. Raise the pivot length for larger structures.
2. Trust the visual hierarchy: dotted lines are candidates, solid lines with ×N tags are market-validated, gray dashed lines are broken and on retest watch.
3. Treat B signals as regime information: grade A breakouts with volume and penetration carry far more weight than the minimum-grade ones, and the grade is one hover away.
4. The R signal is the classic entry location: the broken line has flipped roles and price has confirmed the flip. Stops belong on the far side of the retested line.
5. Use the dashboard's Nearest row to know how far price is from the closest active line in Average True Range units before it gets there.
6. If you want the raw, unfiltered feed, disable the two noise filters in Signals — the engine detects everything either way.
🔶 SETTINGS
- Detection: pivot length, maximum anchor span, active lines per side, line expiry, completed lines to keep.
- Touches, breaks and retests: touch tolerance, touches to confirm, breakout buffer, retest watch window.
- Signals: breakout and retest toggles, confirmed-lines-only filter, minimum breakout grade.
- Channel detection with slope similarity tolerance.
- Full color customization, extension length, touch dots toggle.
- Themeable dashboard: position, four text sizes, title band, background, frame, grid, and three text colors.
🔶 ALERTS
- Trendline Confirmed — a line collected its confirming touch.
- Bullish / Bearish Trendline Breakout — a qualified close through a line, honoring the grade filter.
- Bullish / Bearish Retest Confirmed — a broken line was retested and rejected.
- Parallel Channel Detected — an active support and resistance pair is running as a channel.
🔶 FREQUENTLY ASKED QUESTIONS
Does the indicator repaint? No. Anchors are confirmed pivots and every touch, break, and retest is evaluated at bar close. Pivot confirmation introduces intentional lag equal to the pivot length.
Why do I see so few lines? By design. Between geometric validation, duplicate rejection, side caps, and expiry, only lines with genuine market respect survive. Raise the per-side cap or lower the confirmation count for a busier chart.
What do B and R mean? B is a graded breakout and R is a confirmed retest of the broken line. Hover either label for direction, grade, volume, and penetration details.
Why did a breakout print no signal? Either the line was still unconfirmed while the confirmed-only filter is on, or the break graded below your minimum. The line still changed state; only the signal was filtered.
What makes a grade A breakout? Elevated volume, deep penetration beyond the line in Average True Range terms, and a strong-bodied breakout candle — all three together.
🔶 CREDITS
Trendline analysis, breakout trading, and the break-and-retest pattern are classical charting techniques in the public domain, refined by generations of technicians. This script gratefully acknowledges that shared lineage. The geometric validity engine, touch-earned lifecycle, breakout grading model, retest watch engine, channel detection, noise-filtering architecture, and all code in this script are original work — no third-party or open-source script code was reused.
🔶 LIMITATIONS
Trendlines are geometry, not guarantees: valid lines break and graded breakouts fail. Pivot confirmation delays anchor recognition by design. Volume grading is less meaningful on symbols with unreliable volume reporting. Channel detection reports the closest parallel pair, not every possible channel. No indicator replaces independent analysis.
🔶 DISCLAIMER
This script is provided strictly for educational and informational purposes. It is not financial advice, an investment recommendation, or a solicitation to buy or sell any financial instrument. Past behavior of any trendline, breakout, or retest does not guarantee future results. Trading involves substantial risk. Always do your own research and manage risk independently.
אינדיקטור
AlgoZ Pro Price ActionAlgoZ Pro Price Action is a clean price action based forex indicator built to help traders identify potential Buy, Sell, and Exit areas using a combination of market structure, trend filtering, volatility logic, and dynamic trade management.
This indicator is designed around the idea that not every trade needs to have a high win rate to be useful. Instead of only looking for quick scalp targets, AlgoZ Pro Price Action is built to manage trades with a runner-style approach. The goal is to cut weak trades faster, protect trades that start moving in the right direction, and allow stronger moves to continue when momentum is present.
The default settings are best suited for 1-minute EUR/USD forex trading. Other forex pairs and timeframes may work differently and should be tested before use.
The indicator uses market structure breaks to identify possible directional shifts. When price breaks key internal support or resistance levels, the script checks multiple filters before plotting a signal. These filters are designed to reduce low-quality signals during chop, weak momentum, or overextended conditions.
AlgoZ Pro Price Action includes Buy, Sell, and Exit labels directly on the chart. Buy signals are shown in teal, Sell signals are shown in pink, and Exit signals are shown in a neutral color. The bars can also be colored based on the active signal direction so it is easier to visually track the current market bias.
One of the main parts of this indicator is the trend lock system. The trend lock helps prevent the indicator from flipping back and forth too quickly during noisy market conditions. It uses EMA trend structure, slope behavior, and confirmation bars to decide whether the market is currently favoring Buy-side or Sell-side continuation. Countertrend signals must be stronger before they are allowed through, which helps reduce random reversal signals during an active move.
The indicator also includes automatic forex pair adjustment. It detects whether the chart is a JPY pair or a non-JPY forex pair and automatically adjusts pip size calculations. This helps prevent issues where a stop or exit calculation is too tight or too wide because of the symbol’s price format. The script also includes auto volatility tuning, which uses ATR-based logic to scale stop size, runner triggers, trailing stop distance, dead-trade protection, and cooldown behavior based on the current pair’s movement.
Trade management is handled through a dynamic exit engine. Instead of using only fixed take profit levels, the indicator uses runner logic. Once a trade moves far enough in profit, the trade can enter runner mode. From there, the script can move the stop, protect profit, and trail the trade if the move continues. This allows stronger trades to breathe while still giving the indicator a way to exit when momentum fades.
AlgoZ Pro Price Action also includes dead-trade protection. If a trade has been open for a certain number of bars and has failed to make meaningful progress, the script can plot an Exit signal. This is designed to help remove weak trades that are not moving enough to justify staying in them.
The indicator includes several optional filters and controls, including EMA trend filtering, ADX strength filtering, chop filtering, candle body quality filtering, minimum EMA separation, price distance from the slow EMA, overextension protection, post-exit cooldown, and emergency protection logic.
Main features include:
• Buy, Sell, and Exit labels
• Teal and pink AlgoZ Pro visual theme
• Price action and market structure based signals
• Internal support and resistance break logic
• Optional BOS / CHoCH structure markings
• EMA trend filtering
• ADX trend strength filter
• Chop and range filter
• Candle quality filter
• Trend lock system
• Countertrend signal protection
• Auto pip size detection
• Auto adjustment for JPY and non-JPY forex pairs
• ATR-based auto pair tuning
• Dynamic stop logic
• Runner-style trade management
• Breakeven / profit lock logic
• Trailing stop logic for stronger moves
• Dead-trade exit protection
• Optional bar coloring
• Optional entry and stop lines
• Optional status table
Recommended default use:
1-minute EUR/USD forex chart.
Other forex pairs and timeframes may require adjustment depending on spread, volatility, session, and market conditions. אינדיקטור
Liquidity Sweep Hunter [BigBeluga]🔵 OVERVIEW
The Liquidity Sweep Hunter is a smart, volume-aware charting tool that automatically detects major support and resistance levels.
Unlike basic horizontal line indicators that just draw lines on every swing high or low, this script filters levels based on volume strength . It identifies the "heavy" levels where big money has clearly participated, projects them forward as active boundaries, and alerts you the exact moment price "sweeps" through them.
🔵 FEATURES
The system works by tracking the relationship between price pivots and real-time volume:
1 — Volume-Weighted Level Detection
Smart Pivot Filtering: The engine identifies price pivots ( Length ) but only confirms a level if the volume at that pivot exceeds your defined Filter threshold. This ignores "weak" pivots and keeps your focus only on high-conviction zones.
Dynamic Intensity Engine: The indicator automatically changes the look of the lines based on volume. Levels created with higher volume activity get thicker lines ( Max Line Width ) and higher opacity, making them visually stand out more on your chart.
2 — Automated Liquidity Sweep & Break Logic
Sweep Alerts (✔): When the price briefly dips below a support level (or spikes above a resistance level) and then closes back inside, the indicator plots a checkmark (✔) to identify the "liquidity sweep."
Smart Self-Cleaning: If the price candles break directly through a support or resistance line, the indicator detects the structural breach, changes the line to a dotted style, and removes it from your active list. This keeps your chart free of outdated, broken levels.
🔵 HOW TO USE
This tool is designed to help you trade based on where market participants have placed their stops and orders:
Identify High-Volume Anchors: Use the thick, bold lines to spot the most important support and resistance levels on your timeframe. These are the zones where the script detected significant institutional interest.
Look for Sweep Confirmations: Watch for the (✔) checkmarks after a line is tagged. A liquidity sweep often signals that the market is grabbing "stop-loss" liquidity before reversing in the opposite direction.
Manage Trade Exit Points: Use the lines as your target zones. Since the script automatically turns lines into "dotted" style when they are broken, you have a visual trigger to cut a position if a key structural level fails.
🔵 NOTES
Why this implementation is unique:
It combines two powerful concepts—volume analysis and pivot structure—into a single, lightweight tool that doesn't overwhelm your chart.
The "Dynamic Intensity" settings allow you to see at a glance which levels are mathematically the most significant based on the volume data behind them.
It is a "self-managing" system; by automatically deleting broken levels, it ensures your screen stays clear for your actual trade execution.
אינדיקטור
Intraday MTF SR Zones | ProjectSyndicateIntraday MTF S/R Zones · Reaction Matrix builds the session's support and resistance from real pivot structure on four timeframes at once, then power-ranks every level so you know which ones actually deserve a trade. Each session it pulls confirmed pivot highs and lows from M30, H1, H2 and H4 by default, wraps each one in a uniform ATR-scaled band, fuses overlapping levels into single confluence zones tagged with every timeframe involved, and grades all of them 0–10. The whole tool runs on one idea: not all levels are equal — a level that four timeframes agree on, that rejected price with a violent wick, and that stands far out from the local mean is a different animal from a shallow M30 pivot, and it should not look the same on your chart.
This is a reaction matrix, not a signal generator. It tells you where the auction has previously reacted, how many timeframes are stacked at that price, how hard price was rejected there, and which zone is the strongest one on the chart right now. The read is directional only in the sense that you can see, at a glance, whether the session's structure is stacked with resistance above or support below.
🟢🔴 Summary how to trade this more details below, read entire guide. Two clean approaches: react at the zone, or trade the break of it. Prefer STRONG / ELITE grades and ◆ confluence zones — the shallow low-graded zones tag constantly and mean little. The dashboard's Nearest Res / Nearest Sup and Room in ATR tell you instantly whether a trade from here has space to work. Runs on any intraday timeframe, i.e. M1 M5 M10 M15 M30 H1 H2 H4 +.
🧱 The Pivot Core the only source of truth — Every zone in this tool descends from a confirmed swing pivot, never from an indicator line, a moving average or a projected level. Pivot strength is set left/right 5/5 by default, so a pivot must be the highest high or lowest low of its neighborhood before it counts. Each of the four timeframe slots runs its own pivot scan independently and reports back. Nothing is drawn from a guess.
📐 Four-Timeframe Stacking — Four independent slots, each toggleable, defaulted to M30 · H1 · H2 · H4. A pivot found on H4 spawns a zone; so does one on M30. They are graded very differently — timeframe rank is the heaviest input to the score — but they all live on the same chart, in the same session, in one coherent ladder. Every zone is labeled with the exact timeframe set that produced it, so an M30·H1·H4 zone announces itself as such.
BTCUSD
◆ Confluence Merge the signature feature — This is where the tool separates from a stack of plain pivot lines. Within a session, same-side zones whose bands overlap within a 0.35 ATR tolerance are fused into a single confluence zone. The merged zone inherits a wick-weighted average level, the deepest prominence, the highest timeframe rank, and the union of every timeframe that contributed to it. It is then re-scored, tagged with a ◆ marker, painted in the dedicated confluence color, and given a scoring bonus for every extra timeframe present. Instead of four near-identical lines cluttering the same price, you get one zone that reads M30·H1·H2·H4 and grades near-elite. Merging repeats until the session settles, so three or four overlapping levels collapse cleanly into one.
🏷️ The 0–10 Strength Engine — Every zone carries a live grade with stars and a tier word FORMING → WEAK → MODERATE → STRONG → ELITE. The score is a weighted blend of four independently measurable properties, and all four weights are user-adjustable:
▪️ Timeframe Rank 0.40 — an H4 pivot outranks an M30 pivot. The dominant term.
▪️ Confluence 0.28 — how many timeframes are stacked at this price, plus a flat bonus per extra timeframe.
▪️ Rejection Wick 0.18 — the actual wick beyond the candle body at the pivot, normalized against ATR. A pivot that speared price and snapped back scores higher than a soft rounded turn.
▪️ Pivot Prominence 0.14 — how far the pivot stands out from the local mean, normalized against ATR. An isolated extreme outranks a pivot buried inside congestion.
Read the grade as a descriptive conviction ranking for which zone deserves your attention — it is not a backtested win-rate. A score filter hides everything below a level you choose, so you can strip the chart down to STRONG and ELITE only.
GBPUSD
🗓️ Session Engine & Auto-Cleanup — A fresh stack of zones is born on every new bar of the session timeframe daily by default. Zones span exactly their own session and close cleanly at the boundary — no bleed into the next day. The current session extends a configurable number of bars to the right so live price has room to interact with it. The last N sessions are kept 3 by default and older ones are deleted automatically. Within each session a hard cap 14 by default keeps the stack clean: once it is hit, the weakest-scoring zones are dropped first, so what survives on your chart is by construction the strongest structure of that session.
🎨 Strength-Graded Shading — Four shades per side, graded weak → elite, with opacity scaling directly off the score. Weak zones stay faint, elite zones render solid, and confluence zones take the dedicated confluence color regardless of side. You are reading conviction with your peripheral vision before you read a single number. Resistance runs the teal family, support the magenta-red-purple family, and the whole palette plus transparency floor, opacity span and borders are fully user-editable.
🔎 In-Zone Labels — Each zone is labeled at its center with a ▲ resistance / ▼ support / ◆ confluence marker, the exact timeframe set, the star grade, the X.X/10 score and the tier word. Labels can be restricted to the latest session only, or turned off entirely for a pure heatmap look. Four label sizes.
XAUUSD
📋 Live Dashboard — A compact panel that answers the questions you actually ask a levels tool:
▪️ Per-timeframe breakdown — how many resistance and how many support zones each of the four timeframes currently holds, with a ▲ RES / ▼ SUP / ● BAL bias tag per timeframe. Structure stacked above or below, at a glance, timeframe by timeframe.
▪️ ★ Strongest — the single highest-graded zone on the chart: its price, its timeframe set, its score and tier, marked ◆ when it is a confluence zone.
▪️ ▲ Nearest Res / ▼ Nearest Sup — the closest zone above and below price, each with its price, timeframe set and score. Your immediate context.
▪️ Price Position & Room — whether price sits nearer support or nearer resistance, and the distance between the two nearest zones expressed in ATR. Room tells you whether there is anything to trade for.
▪️ Session state — zones this session vs total kept, confluence count, average score, current session Asian / London / NY, pivot setting, merge state, per-session cap and the strong-zone threshold.
🔒 Non-Repainting — Higher-timeframe data is requested with lookahead disabled, and zones only spawn on confirmed bars. A pivot is only a pivot once its right-hand bars have printed, so a level appears after its confirmation delay and then never moves, never repaints, and never disappears retroactively. Past sessions are frozen exactly as they were drawn. This is the honest tradeoff of pivot structure: confirmation costs you bars, and in exchange the level is real.
🔔 Native Alerts — New Resistance Level and New Support Level fire the moment a fresh pivot zone forms on any enabled timeframe. Price At Resistance Zone and Price At Support Zone fire on a touch. Price At STRONG Zone fires only when price tests a zone above your strong-zone threshold — the one alert most people will actually run.
ES
🔧 Fully Customizable — Four timeframe slots and their toggles, pivot strength left/right, resistance/support toggles, session timeframe, sessions kept, per-session zone cap, right-extension, zone thickness by ATR multiple or percent of price, ATR length, merge toggle and merge distance, confluence bonus, all four scoring weights, the score filter, the strong-zone threshold, label visibility/size/scope, the full eight-shade palette, confluence color, transparency floor, opacity span, borders, and dashboard position and size — all adjustable.
🎯 Why this is different — Most S/R tools draw every pivot they find and leave you staring at forty identical lines, all weighted the same, with no way to tell the H4 confluence shelf apart from an M30 blip. This one grades them, merges them, caps them and shades them by conviction, so the chart itself does the filtering. You read the level, the timeframes stacked at it, and the conviction score — at a glance.
🚀 Apply to Gold XAUUSD, Silver, Forex, Crypto and Indices on any intraday timeframe.
🎯 How To Trade It — Two Approaches
Everything hinges on the grade. A FORMING or WEAK zone is noise you can see; a STRONG or ELITE ◆ confluence zone is where multiple timeframes have already fought. Trade the graded zones, and use Room in ATR to confirm the trade has somewhere to go.
◾ 1 REACT at the zone — trade the rejection
This is the tool's core use. Price arrives at a high-graded zone and you fade the touch back toward the opposite side of the ladder.
▪️ Setup: wait for price to reach a STRONG / ELITE zone — ideally a ◆ confluence zone carrying three or four timeframes. Check the dashboard: is it the ★ Strongest zone? Is Room to the opposite zone worth the risk?
▪️ Entry: on rejection out of the zone, with your own confirmation — a wick, an engulfing close, a lower-timeframe structure break. The zone is the location; it is not the trigger.
▪️ Stop: on the far side of the zone band. The band has real thickness for exactly this reason. A decisive close through the zone means the level failed and the thesis is wrong.
▪️ Targets: the Nearest Sup / Nearest Res on the opposite side, then step through the ladder tier by tier, banking partials at each graded zone.
⚖️ The cleanest version: price runs into a ◆ confluence zone that four timeframes share, grades ELITE, sits at the top of an empty stretch of Room, and rejects on the first touch. First touches of fresh high-graded zones are the setup; the fifth retest of the same zone is not.
◾ 2 TRADE THE BREAK — the zone flips role
The mirror case, and the one that saves you when approach 1 fails.
▪️ Setup: a decisive close through a high-graded zone — especially a ◆ confluence zone — is meaningful information. It took real displacement to break a level that many timeframes were defending.
▪️ Entry: on the retest of the broken zone from the other side, once it has flipped from resistance to support or support to resistance.
▪️ Stop: back on the original side of the zone. If price reclaims it, the break failed.
▪️ Targets: the next graded zone in the direction of travel, then the next. Use the per-timeframe bias tags on the dashboard: breaking into a region where every timeframe shows ▼ SUP means thin structure ahead.
⚖️ Watch the ★ Strongest readout. When the strongest zone on the chart breaks and holds as a flip, that is the session's structural event.
Rule of thumb: ⭐ First touch of a fresh STRONG / ELITE ◆ zone with Room behind it → look for the rejection trade. ⭐ Decisive close through a high-graded zone → stop fading it, wait for the retest and trade the flip. ⭐ Low grades, no Room, or a zone already tested repeatedly → no trade. The score exists to tell you when to do nothing.
⚠️ IMPORTANT NOTICE: Intraday MTF S/R Zones · Reaction Matrix maps and ranks pivot-derived support and resistance across four timeframes. The 0–10 score is a descriptive conviction ranking built from timeframe rank, confluence, rejection wick and pivot prominence — it is not a backtested win-rate, and this indicator tracks no trade outcomes and reports no performance statistics. Zones are locations, not entries. Pivot confirmation means a level appears only after its right-hand bars have printed. These zones are decision support, not a standalone trade trigger. Always combine them with your own strategy, price-action confirmation and risk management. Past behavior does not guarantee future results. אינדיקטור
